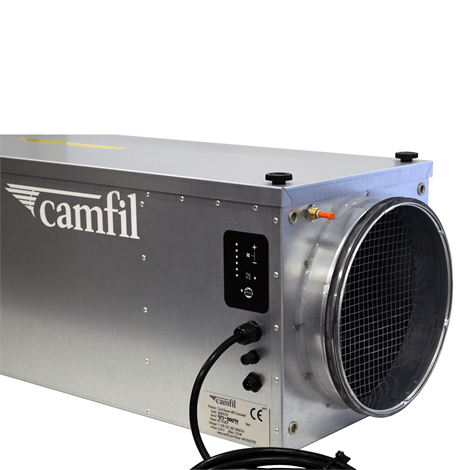

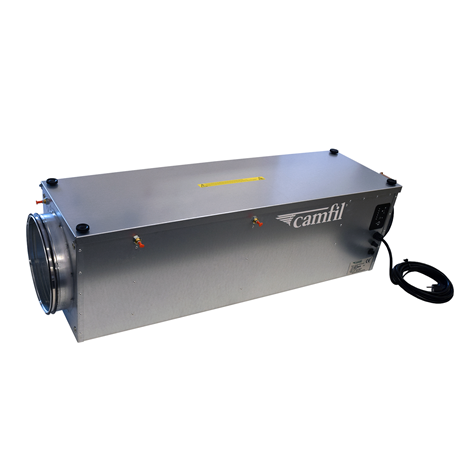

CC 400 Concealed

  • Healthier employees
  • Less cleaning
  • Lower energy costs
  • Reduced environmental impact
  • Clean products, fewer operational disruptions
  • Easy to adapt ducts and diffusers
  • Less odour
  • RS 485 connection for PLC or BMS systems
  • ICON7 iso16890.ai
  • ICON9 en1822
  • ICON37 ISO10121
Item Type Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
CC 400 Concealed 230V (Galvanised) 1112 313 327 400 137
CC 400 Concealed 230V (Stainless steel) 1112 313 327 400 137
CC 400 Concealed 115V (Galvanised) 1112 313 327 400 137
CC 400 Concealed 115V (Stainless steel) 1112 313 327 400 137

Specifications

Application
Concealed air cleaner for offices, hospitals, F&B and industrial applications, purifies rooms up to 120 m².
Frame
Stainless steel, Galvanised steel
Voltage usage
200...240V
Installation options

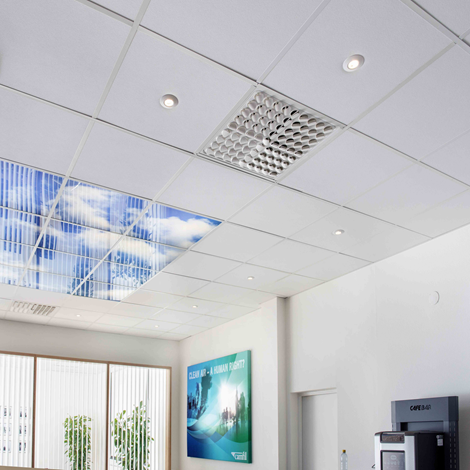

Wall or ceiling (built in)
Comment
Frequency / Hz: 50/60
Max airflow 700m3/h at 400 Pa with duct connection 250mm.
Air flow or IAQ control trough touch panel or wireless through air image system.
Standard filters @PM1 50% and H13, possible to upgrade with molecular filters.
