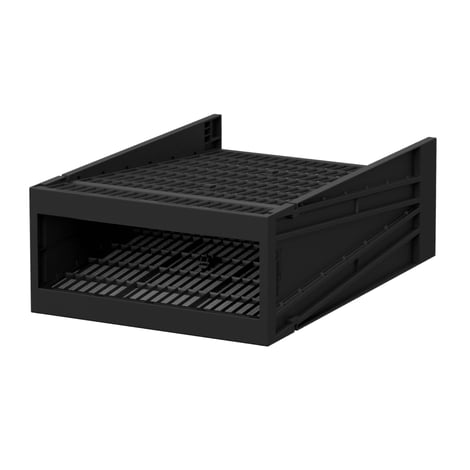

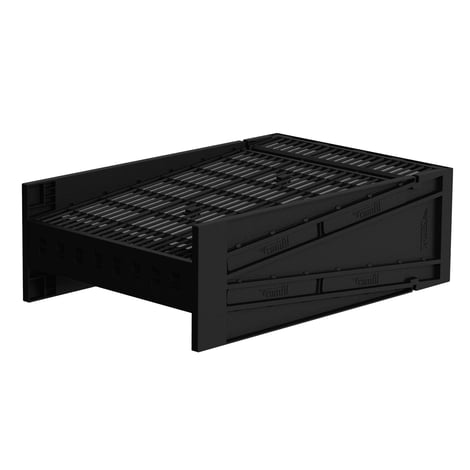

A compact, refillable, corrosion-resistant V-cell molecular filter filled with Camfil activated alumina or activated carbon. They provide a compact, low-pressure drop option to improve IAQ by adsorbing odors and irritant gases from the supply and recirculating air systems in commercial applications and corrosive gases from recirculation systems for industrial applications.
| Item Type | Width (mm) | Height (mm) | Depth (mm) | Pressure drop (Pa) | Nominal weight (kg) | Nominal weight (lbs) | Optimum RH (%) | Optimum temperature (°C) | Optimum temperature (°F) |
|---|---|---|---|---|---|---|---|---|---|
| CamCarb VG440 SO2_H2S^³ | 300 | 150 | 440 | 94 | 6.5 | 14.3 | 40 - 90 | 10 - 60 | 50 - 140 |
| CamCarb VG440 Acids_H2S^³ | 300 | 150 | 440 | 94 | 6.5 | 14.3 | 40 - 90 | 10 - 60 | 50 - 140 |
| CamCarb VG440 VOC | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 0 - 70 | Max. 40 | Max. 104 |
| CamCarb VG440 H2S_Mercaptans | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 40 - 90 | 10 - 60 | 50 - 140 |
| CamCarb VG440 Acids | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 40 - 90 | 10 - 60 | 50 - 140 |
| CamCarb VG440 VOC_O3_Acid_H2S | 300 | 150 | 440 | 120 | 5.6 | 12.5 | 40 - 70 | 10 - 40 | 50 - 104 |
| CamCarb VG440 VOC_O3_NO2_SO2 | 300 | 150 | 440 | 142 | 4.7 | 10.3 | 0 - 70 | Max. 40 | Max. 104 |
| CamCarb VG440 Bases | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 40 - 90 | 10 - 40 | 50 - 104 |
