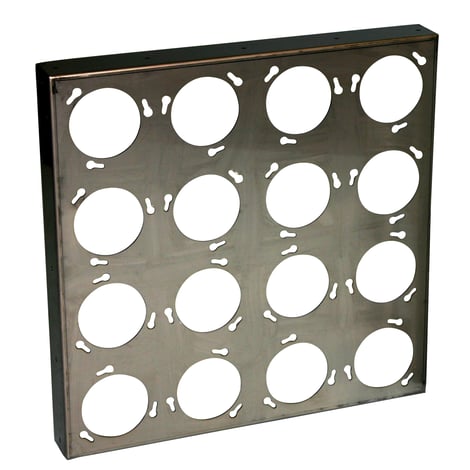

CamCarb Cylinder Holding Frame

Built-up bank frame combines high-capacity adsorbent canisters for large system gaseous contaminant control

  • Include a unique bayonet mount that assures a tight filter-to-frame seal.
  • Manufactured from 14-gauge welded aluminized steel (also available in stainless steel).
  • Include mounting holes and flow paths for lock-mounting of CamCarb adsorbent cylinders (order separately, see Camfil product literature 2112).
  • Include pre-drilled holes for riveting or bolt-together installation of built-up banks.
  • May be assembled in banks up to six units high and any number of units wide (flat stock vertical stiffener bars are required for banks four to six units high alternating every other filter frame).
  • May be combined with additional banks of frames for additional gaseous or particulate filtration.

Specifications

Application
Large system retrofits, custom air handling systems and other HVAC systems handling large volumes of air.
Filter Frame
Galvanized steel
Comment
Frame thickness .06” (1.5 mm) and .08” (2mm)
