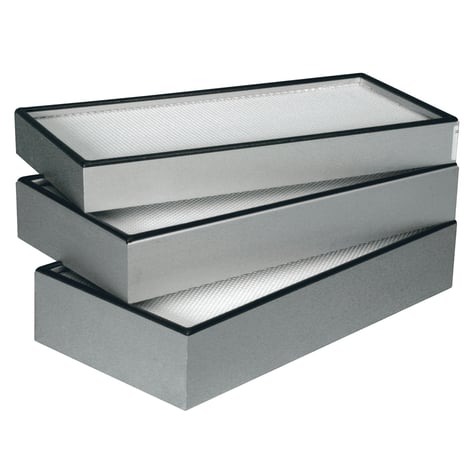

Megalam Panel Filters

HEPA/ULPA mini-pleat panel filters for installation in clean room ceiling modules or filter housings.

  • Available in 53mm, 70mm or 100mm pack depths.
  • Available with gasket, knife-edge, or gel channel for sealing to mounting hardware.
  • Microfine glass media with thermoplastic resin separators formed into a single mini-pleat filter pack.
  • 95% at 0.3µ to 99.99995% at most penetrating particle size (MPPS).
  • ICON9 en1822

Specifications

Application
Pharmaceutical and semiconductor manufacturing facilities, medical facilities and other clean process applications
Filter Frame
Anodized aluminium
Media
Glass fiber
Recommended final pressure drop
2x Initial pressure drop
Separator
Hot-melt Separator Technology
Gasket
Available on demand
Sealant
Polyurethane
Comment
Tested in accordance with IEST Recommended Practice for Testing HEPA Filters.
UL 900.
Max temperature (°C)
71º C, 160º F
