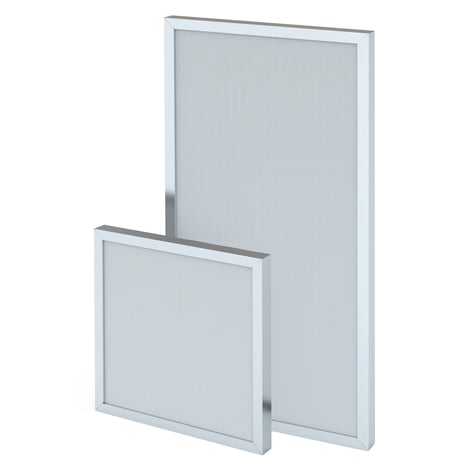

Megalam ES

ePTFE HEPA panel filter for life sciences applications requiring periodic oil aerosol filter scan testing.

  • Strength and durability
  • Energy Savings
  • Resistance to premature oil loading
  • Heavy-duty, light weight anodized aluminum frame
  • Thermoplastic resin media separators
  • Security - bar coded label with test results
  • ICON5 Low Pressure Drop
  • ICON42 UL logo

Video

Specifications

Application
Life sciences applications requiring periodic scan testing with oil aerosols
Filter Frame
Extruded anodized aluminium
Relative Humidity
90%
Recommended final pressure drop
2x Initial pressure drop
Material
Extruded anodized aluminium
Separator
Hot-melt Separator Technology
Gasket
Polyurethane, EPDM, Seamless PU foamed gasket
Sealant
Polyurethane
Comment
State of the art ePTFE media
Max temperature (°C)
70
Max Temperature (°F)
160
