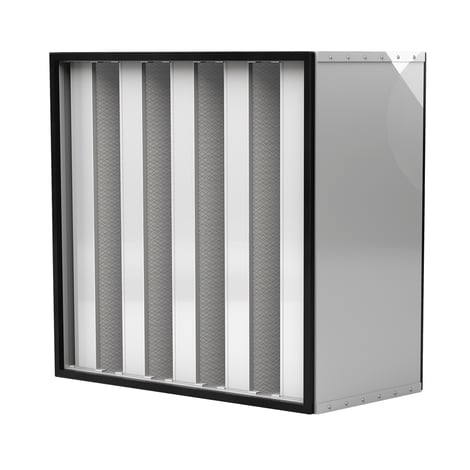

Absolute VN

Nuclear Grade AG-1 HEPA filter

  • ASME AG-1 Size 8, 2000 CFM HEPA Filters
  • Minimum efficiency of 99.97% at 0.3µ.
  • Media: Microfine glass media, qualified in accordance with ASME AG-1 article FC-3130, pleated into individual mini-pleat panels with the pleats separated by continuous fiberglass threads bonded to the filter media and assembled into a V-form.
  • Temperature: Maximum continuous operating temperature of 250 °F (121 °C).
  • Testing: Tested in accordance with the methods of IEST-RP-CC007.
  • UL-586 approved and listed.
  • ICON42 UL logo

Specifications

Filter Frame
Stainless steel
Media
Glass fiber
Gasket
Silicone Gel, Neoprene
Max Temperature (°F)
250
