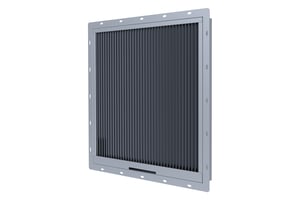

CamVane HC

The CamVane HC vane separator/weather louvre is made of specially designed profiles which effectively capture water droplets from the air stream and function as an excellent water separator. The CamVane HC consists of louvres with a heating cable. The heating cable (-HC) helps prevent snow and ice accumulation on the vanes. The CamVane HC is produced in aluminium which gives good corrosion protection. The louvres are made in customer-specified sizes and are easy to install and maintain low-pressure drop with a low noise level.

  • Effective rain separator
  • Specially designed profiles for high separation efficiency
  • Designed for tough conditions
  • Wide range of dimensions
  • Heat cable to decrease the risk of ice build
  • ICON24 magicad
  • ICON35 camvane_function


Turbomachinery Systems such as gas turbines, large industrial air compressors, diesel & gas engines, and generators.
The air intake which is very efficient as rain protection can be used in all filter installations where water, rain, or fog conditions occur. Also suitable in marine environments and coastal areas.
Installation options
Mounting flange or fastening ears to customer specifications.
Product Features:
CamVane has specially designed aluminium profiles which ensure high separation efficiency
Frame material: Aluminum EN-AW-5754
Profiles material: Aluminum EN-AW-6060
Dimensions (WxH): From 250x250 mm to 2500 x 2500 mm, depth 100 mm
Air velocity: 1.0 - 5.0 m/s in the duct system. HC (heat cable) option 1.0-3.0 m/s.
When ordered in stainless version: Frame: Stainless AISI316L, Profiles: Aluminum EN-AW-6060
Tested according to EN 13030:2001: Class A
Options: Mounting flange, drain type, painted, with heat cable (CamVane HC)
