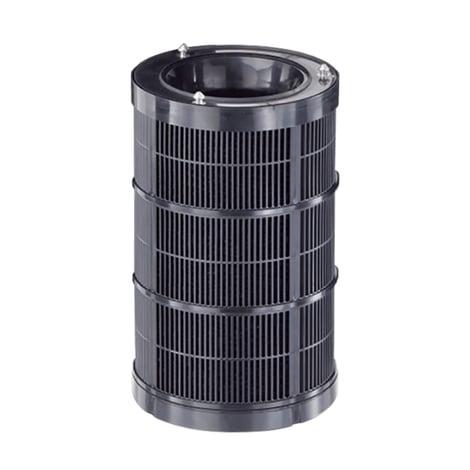

A cylindrical, corrosion-resistant molecular filter filled with Camfil's activated alumina or activated carbon. They are a compact, high-efficiency solution for installation in low-airflow air cleaners or custom equipment.
| Item Type | Airflow (m3/h) | Diameter 1 (mm) | Length 1, Cylindrical (mm) | Pressure drop Initial (Pa) | Nominal weight (kg) | Nominal weight (lbs) | Optimum RH (%) | Optimum temperature (°C) | Optimum temperature (°F) |
|---|---|---|---|---|---|---|---|---|---|
| CamCarb CG 1300 SO2_H2S^³ | 1250 | 148 | 240 | 80 | 2.4 | 5.3 | 40-90 | 10-60 | 50-140 |
| CamCarb CG 1300 Acids_H2S^³ | 1250 | 148 | 240 | 80 | 2.4 | 5.3 | 40-90 | 10-60 | 50-140 |
| CamCarb CG 1300 VOC | 1250 | 148 | 240 | 80 | 1.6 | 3.6 | 0-70 | Max. 40 | Max.104 |
| CamCarb CG 1300 H2S_Mercaptans | 1250 | 148 | 240 | 80 | 1.6 | 3.6 | 40-90 | 10-60 | 50-140 |
| CamCarb CG 1300 Acids | 1250 | 148 | 240 | 80 | 1.6 | 3.6 | 40-90 | 10-60 | 50-140 |
| CamCarb CG 1300 VOC_O3_Acid_H2S | 1250 | 148 | 240 | 100 | 2.0 | 4.4 | 40-70 | 10-40 | 50-104 |
| CamCarb CG 1300 VOC_O3_NO2_SO2 | 1250 | 148 | 240 | 60 | 1.5 | 3.3 | 0-70 | Max. 40 | Max.104 |
| CamCarb CG 1300 Bases | 1250 | 148 | 240 | 80 | 1.6 | 3.6 | 40-90 | 10-60 | 50-140 |
