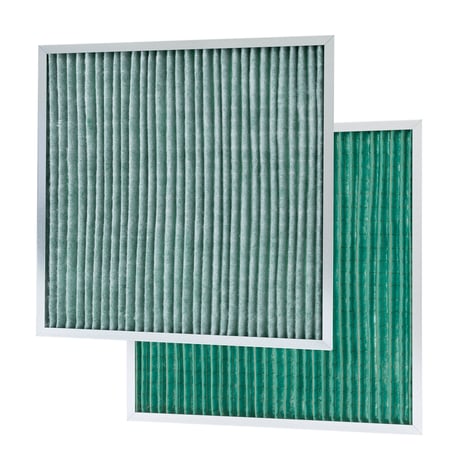

Dual10 Metal

A galvanized steel frame suitable for post-use recycling, and a significant reduction in the number of filter changes due to an extended lifetime, makes the Dual 10 one of the most sustainable prefilters on the market. Designed for the prefiltration stage to ensure optimal working conditions of the HVAC system, with extraordinary performance results.

  • Galvanized steel frame suitable for post-use recycling.
  • Prefilter ePM10 55%
  • Highest energy efficiency class amongst prefilters
  • Extended lifetime, up to 12 months depending on the application
  • Proprietary dual layered media for continuous filtration efficiency and high dust holding capacity
  • Radial pleats supported by a metal grid hold the pleat formation throughout its lifetime
  • ICON7 iso16890.ai
  • ICON23 Eurovent_no_abc
Item Type ISO 16890 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa) Energy (kWh/year) Energy Class (Eurovent)
1055 592x592x48 ePM10 55% 592 592 48 3400 70 1080 D
1055 492x492x48 ePM10 55% 492 492 48 2400 70 D
1055 492x622x48 ePM10 55% 492 622 48 3000 70 D
1055 492x592x48 ePM10 55% 492 592 48 2800 70 D
1055 392x622x48 ePM10 55% 392 622 48 2400 70 D
1055 392x492x48 ePM10 55% 392 492 48 1900 70 D
1055 287x592x48 ePM10 55% 287 592 48 1700 70 D
1055 592x592x96 ePM10 55% 592 592 96 3400 65 1020 D
1055 492x492x96 ePM10 55% 492 492 96 2400 65 D
1055 492x622x96 ePM10 55% 492 622 96 3000 65 D
1055 492x592x96 ePM10 55% 492 592 96 2800 65 D
1055 392x622x96 ePM10 55% 392 622 96 2400 65 D
1055 392x492x96 ePM10 55% 392 492 96 1900 65 D
1055 287x592x96 ePM10 55% 287 592 96 1700 65 D

Specifications

Application
Prevention of dust and dirt build up on heating/cooling coils within ventilation systems
Filter Frame
Metal
Media
Dual layered, blended polyester
Max temperature (°C)
90ºC
Relative Humidity
100%
Max final pressure drop, EN 13053
Initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is lower)
Dimension standard
Filter front dimensions according EN 15805
Installation options
Front and side access housings and frames are available.
Max Airflow
1,25 x nominal flow
