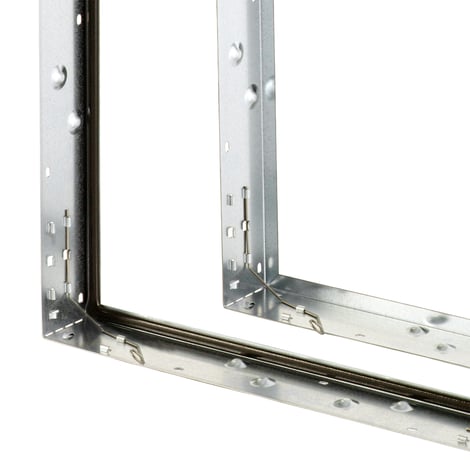

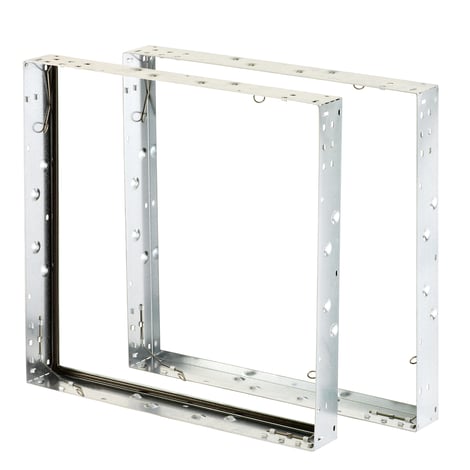

Universal filter holding frame

  • Robust rigid construction
  • Pre drilled for easy assembly
  • Filter holding clips can be easily replaced as required
  • Modular design adaptable for all types of installations
  • Location dimples in frame ensure correct filter fitting
Width (mm) Height (mm) Depth (mm)
608 608 76
303 608 76
303 608 68
608 608 68

Specifications

Application
Mounting air filters in air conditioning systems
Frame
Stainless steel, Galvanised steel
Comment
Gasket: Type 4: endless PU; Type 8: PU foam.
Filter Types: Pre-filters and header frame type filters.
Filter fixing: Using 4 corner mounted clips, to suit the installed filter.
Note: Remember to order the frame and the appropriate clips
