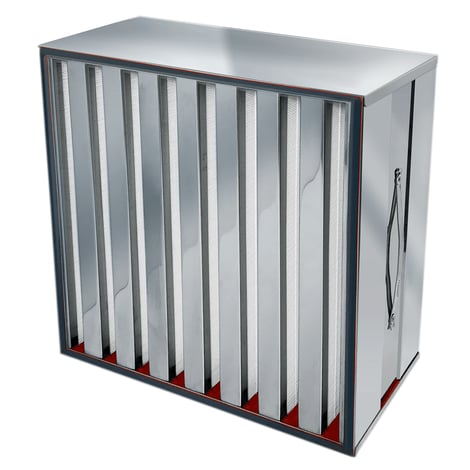

Sofilair HT230

  • High temperature HEPA filter
  • Very high air flow (2,2m/s)
  • Maximum continuous operating temperature 230ºC,
  • High filter surface area offers low pressure drop for energy savings and longer life
  • ICON9 en1822
Item Type Filter Class EN1822 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
SFR230-ER-3000-H13-610X610X292 H13 610 610 292 3000 275
SFR230-ER-1500-H13-305X610X292 H13 305 610 292 1500 275
SFR230-ER-1400-H13-610X610X292 H13 610 610 292 1400 130
SFR230-ER-700-H13-305X610X292 H13 305 610 292 700 130

Specifications

Application
High temperature applications such as spray dryers and ovens
Frame
Stainless steel
Media
Glass fiber
Max temperature (°C)
230°C in continuous operation
Max Temperature °C (Peak)
250°C
Relative Humidity
100%
Recommended final pressure drop
2x Initial pressure drop
Separator
Glassfiber
Gasket
Silicone
Sealant
Silicon HT
Installation options
FKB, FKB/D, CamBox
Max. final pressure drop
400 Pa
Comment
Eff. 99.99 % 0.3μm
For opposite airflow direction there is a specific version on request.
