molecular services

Molecular Contamination Control

Laboratory service

The molecular media test rig and the unique full-scale chemical filter test rig at our corporate head-quarters in Trosa, Sweden and Ipoh, Malaysia are examples of the significant investment made in the field of molecular filtration. In this unique facility, full size gas filters operated in the rig under a wide range of temperature and humidity conditions and challenged with different gases according to ISO 10121-1 and 10121-2. The efficiency and life are determined using an array of sophisticated gas detection equipment.


molecular air tests

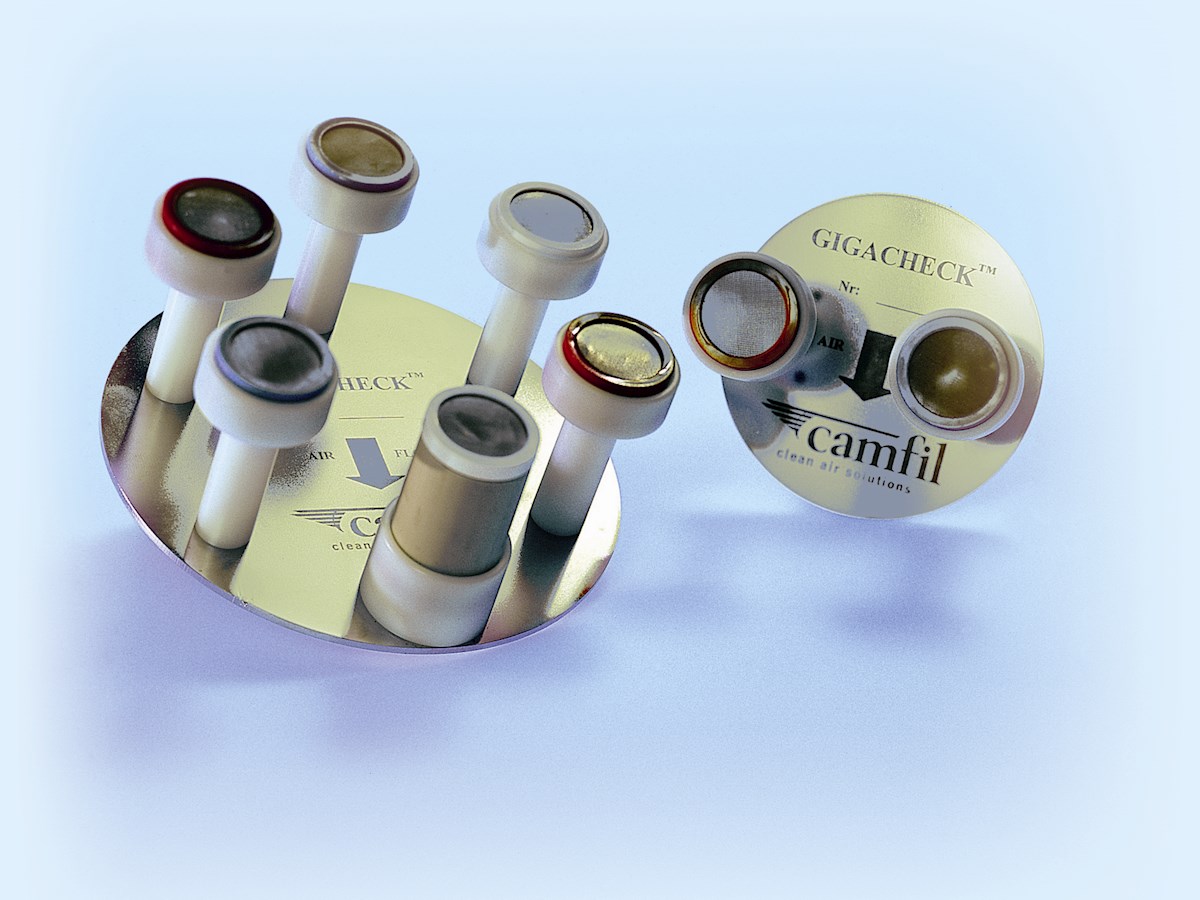

GIGACHECK ACTIVE

  • Offline measurements (2 to 6 hours sampling)
  • Detection and quantitation of various VOC. Broader detection than Gigacheck Passive
  • Detection and quantitation of ions (F-, CI-, NO2, NO3-, SO42-, PO42-, NH4+)
  • Currently available in Asia

GIGACHECK PASSIVE

  • Offline, passive sampling
  • Sampling time 1 day-1 month depending on application
  • VOC (benzene, toluene, octane, butyl acetate, ethyl benzene, xylene and nonane)
  • Acids (H2S, SO2, NO2, NO, HNO3, HF, HCI)
  • Bases (NH3)
  • Organic acids (Acetic acid, Formic acid)
  • Ozone (O3)
  • Available in North America, Europe, Middle East and Asia

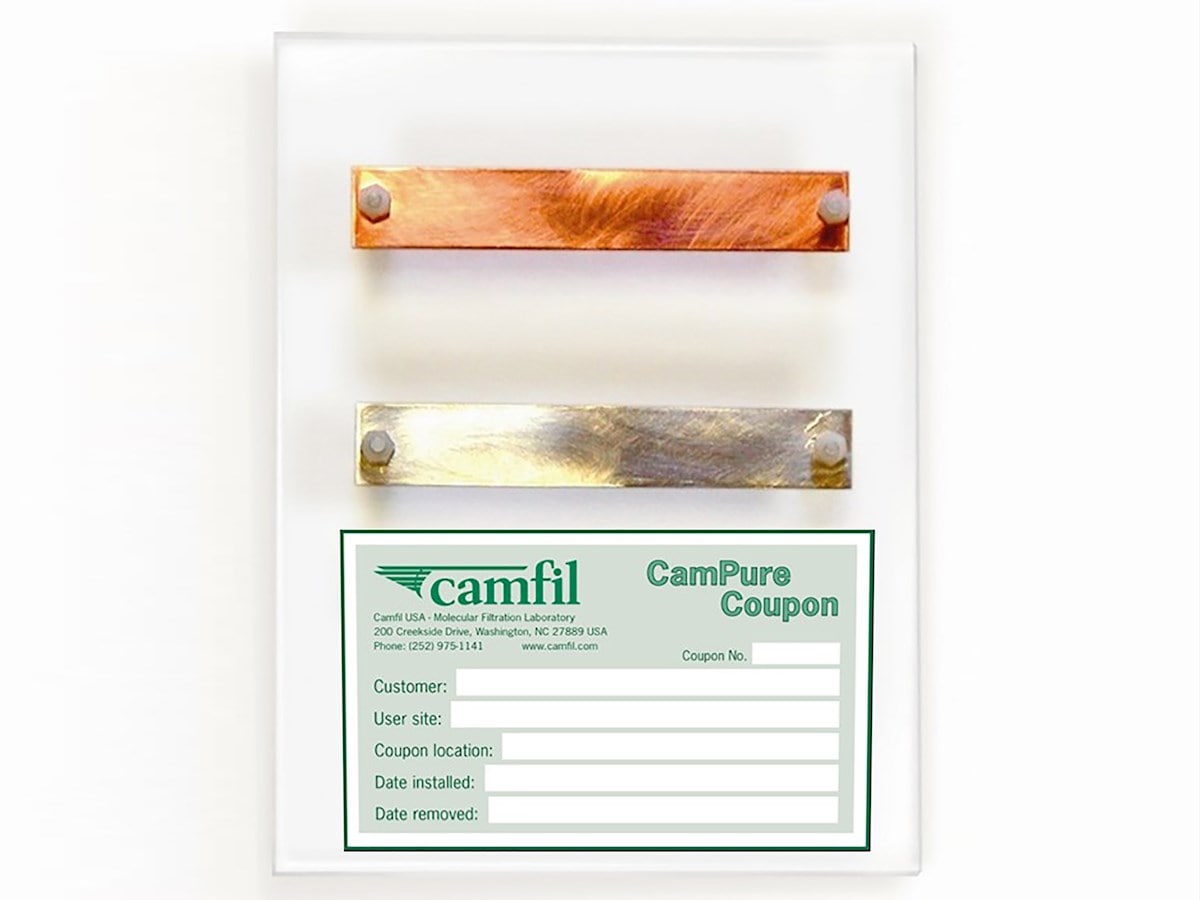

CAMPURE CORROSION COUPONS

  • Offline, passive sampling
  • Gives corrosion levels according to ISA Standard 71.04-2013
  • Sampling time 30 days
  • Coupon analysis available in North America, Europe, Middle East and Asia.

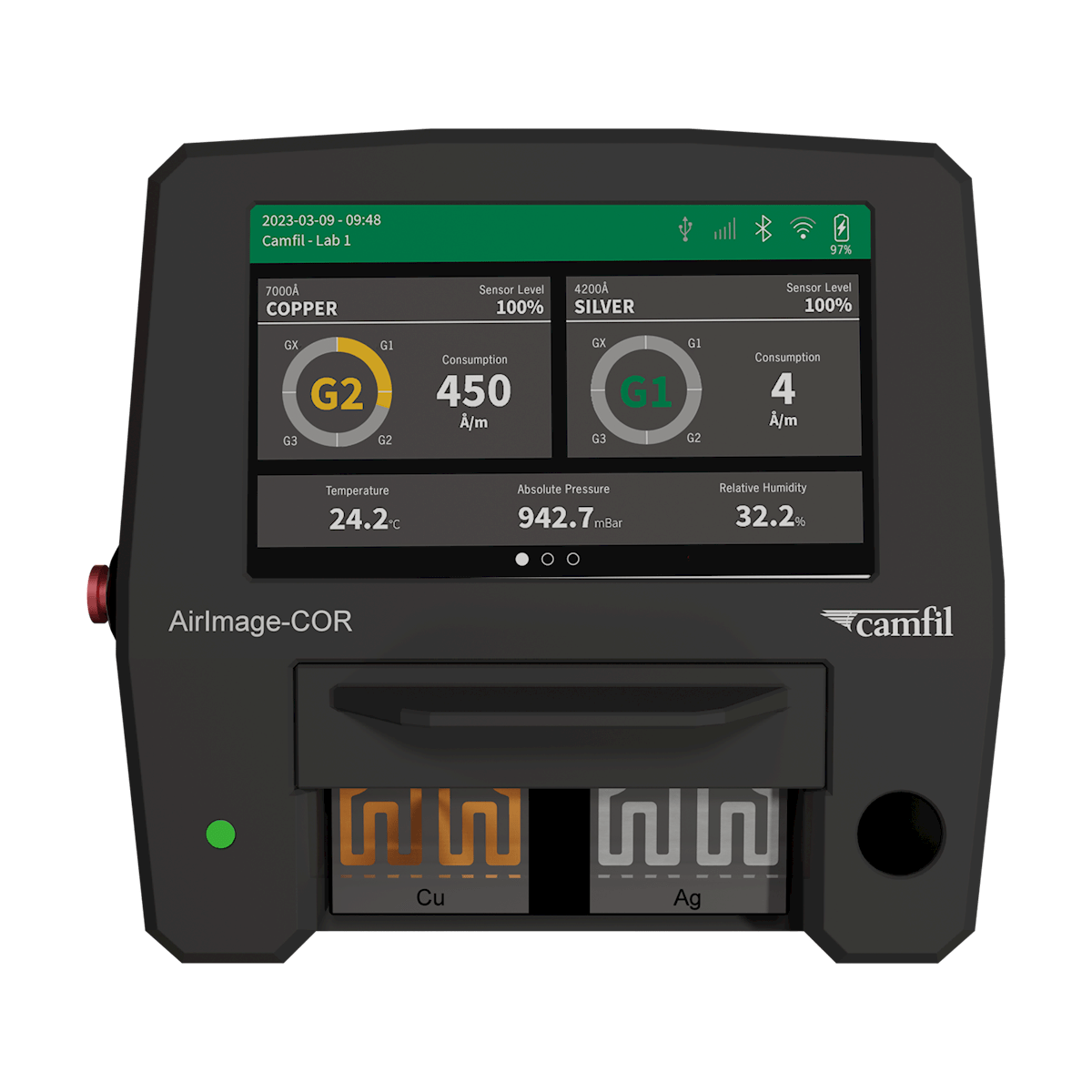

AirImage-COR

  • Instant corrosion readings at your fingertips
  • Most accurate sensors engineered for real-time corrosion monitoring
  • Plug and Play, calibration in-situ
  • Full suite of connectivity options to Building Management Systems
  • Customizable notifications by email and SMS
  • Manage the device remotely with the Progressive Web Application (PWA)

MOLECULAR MEDIA TESTS

GIGAMONITOR (DESTRUCTIVE TEST)

  • Offline measurement
  • Destructive test (post-mortem test)
  • Evaluation of condition and residual life of pleated molecular filters
  • VOCs and organic condensables identification and quantitation
  • Residual chemical capacity for acids and bases
  • Available in North America, Europe, Middle East and Asia.

Let Camfil be your clean air partner. Contact us today!
