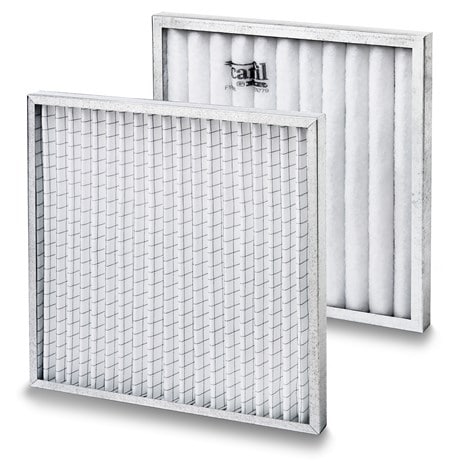

CamPlis G4

  • Bonded into case to eliminate air by-pass
  • Less frequent changes
  • Robust metal header frame
  • Large surface area
  • Suitable for high air flow conditions
  • Ultra compact
Item Type Filter Class EN779 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
CAMPLIS I G4 592 592 48 3240 80
CAMPLIS I G4 592 287 48 1570 80
CAMPLIS I G4 592 592 98 3790 80
CAMPLIS I G4 592 287 98 1840 80

Specifications

Application
Pre Filter for comfort air conditioning applications
Filter Frame
Galvanised steel
Media
Polyester
Max temperature (°C)
110ºC
Max final pressure drop, EN 13053
Initial pressure drop + 50 Pa or initial pressure drop x3 (whichever is lower)
Grille, Downstream
Wire mesh
Grille, Upstream
Wire mesh
Installation options
Front and side access housings and frames are available, Type FHF Front Loading Frames and FC Housings
Comment
Opacimetric Efficiency: 90%
Fire Classification: M1
