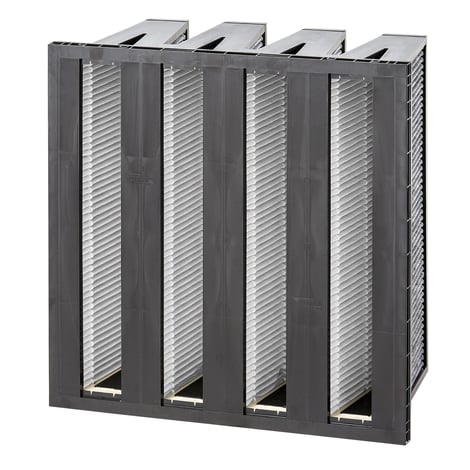

CityCarb E

  • Compact “2-in-1” filtration solution; particulate and molecular
  • Ideal for filtering low concentrations of most external and internal source pollutants
  • 100% incinerable
  • Can be used to upgrade existing installations
  • Range of standard sizes
  • Rapid Adsorption Dynamics (RAD)
  • Filter class M6 acc. EN 779:2012 and ePM10 80% acc. ISO 16890
  • ICON34 gasket_01_00_10
  • ICON2 eurovent energy efficiency class
  • ICON3 efficiency guarantee
  • ICON7 ISO16890.ai
  • ICON8
  • ICON28 ozone 7
  • ICON14
Item Type ISO/PM rating Filter Class EN779 Width (mm) Height (mm) Depth (mm) Energy Class (Eurovent) Airflow (m3/h) Pressure drop Initial (Pa)
CIZP-6E 0592/0490/0292 ePM10 80% M6 592 490 292 E 2800 80
CIZP-6E 0592/0592/0292 ePM10 80% M6 592 592 292 E 3400 80
CIZP-6E 0592/0287/0292 ePM10 80% M6 592 287 292 E 1500 80

Specifications

Application
Particle and odour removal in offices, hospitals, airports etc
Frame
Plastic
Media
Synthetic/Activated Carbon
Max temperature °C
50ºC
Relative Humidity
70%
Dimension standard
Filter front dimensions according EN 15805
Installation options
Front and side access housings and frames are available
Max Airflow
1,25 x nominal flow
