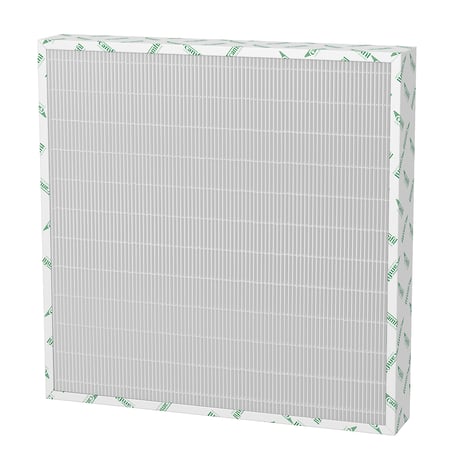

EcoPleat Eco

A pleated panel filter with premium cardboard frame suitable for environments with high humidities. With its low pressure drop and high dust holding capacity, lowest labour cost thanks to less frequent filter changes can be achieved. This filter comes in ePM1 as well as ePM10 efficiencies according to ISO16890.

  • Ultra compact panel filter with ePM1 and ePM10 efficiencies
  • Low pressure drop thanks to large surface area
  • Long operating life with large dust holding capacity
  • Less frequent changes
  • Fully combustible cardboard frame
  • ICON3 efficiency guarantee
  • ICON7 iso16890.ai
  • ICON23 Eurovent_no_abc
Item Type ISO 16890 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
Eco ePM10 60% 592 592 96 2900 60
Eco ePM10 60% 287 592 96 1450 60
Eco ePM2,5 50% 592 592 96 2900 80
Eco ePM2,5 50% 287 592 96 1450 80
Eco ePM1 55% 592 592 96 2900 100
Eco ePM1 55% 287 592 96 1450 100
Eco ePM1 70% 592 592 96 2900 105
Eco ePM1 70% 287 592 96 1450 105
Eco ePM10 60% 592 592 48 2900 65
Eco ePM10 60% 287 592 48 1450 65
Eco ePM2,5 50% 592 592 48 2900 85
Eco ePM2,5 50% 287 592 48 1450 85
Eco ePM1 55% 592 592 48 2900 110
Eco ePM1 55% 287 592 48 1450 110
Eco ePM1 70% 592 592 48 2900 160
Eco ePM1 70% 287 592 48 1450 160

Specifications

Application
Air conditioning or industrial processing systems and for mini air conditioning systems, individual modules and ventilation equipment
Filter Frame
Rigid water resistant cardboard
Media
Glass fiber
Max temperature (°C)
70ºC
Relative Humidity
100%
Max final pressure drop, EN 13053
Initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is lower)
Separator
Hot-melt
Dimension standard
Filter front dimensions according EN 15805
Installation options
Front and side access housings and frames are available
Max Airflow
1,25 x nominal flow
