Copenhagen Airport

Airport solves moisture problems with droplet capture

Created Monday, September 26, 2022

Copenhagen Airport was founded in 1925 and was thus one of the first commercial airports in the world. The early years were characterized by a pioneering spirit, and at the same time, air travel was still reserved for the most privileged.

Since its start, both the commercial airline industry and Copenhagen Airport have undergone enormous development. One development where Copenhagen Airport constancy lies far ahead is the travel count. In 2018, the airport set a record with 30.3 million passengers

Focus on air pollution

It is a challenge for all airports that large amounts of outside air penetrate into terminals and other buildings – air which is often filled with dangerous particles and gases. The source of the pollution is both the planes and the vehicles used to support the aviation operation. Copenhagen Airport works purposely to for air travels and for the airport‘s many to protect the health of the air travelers and many thousands.

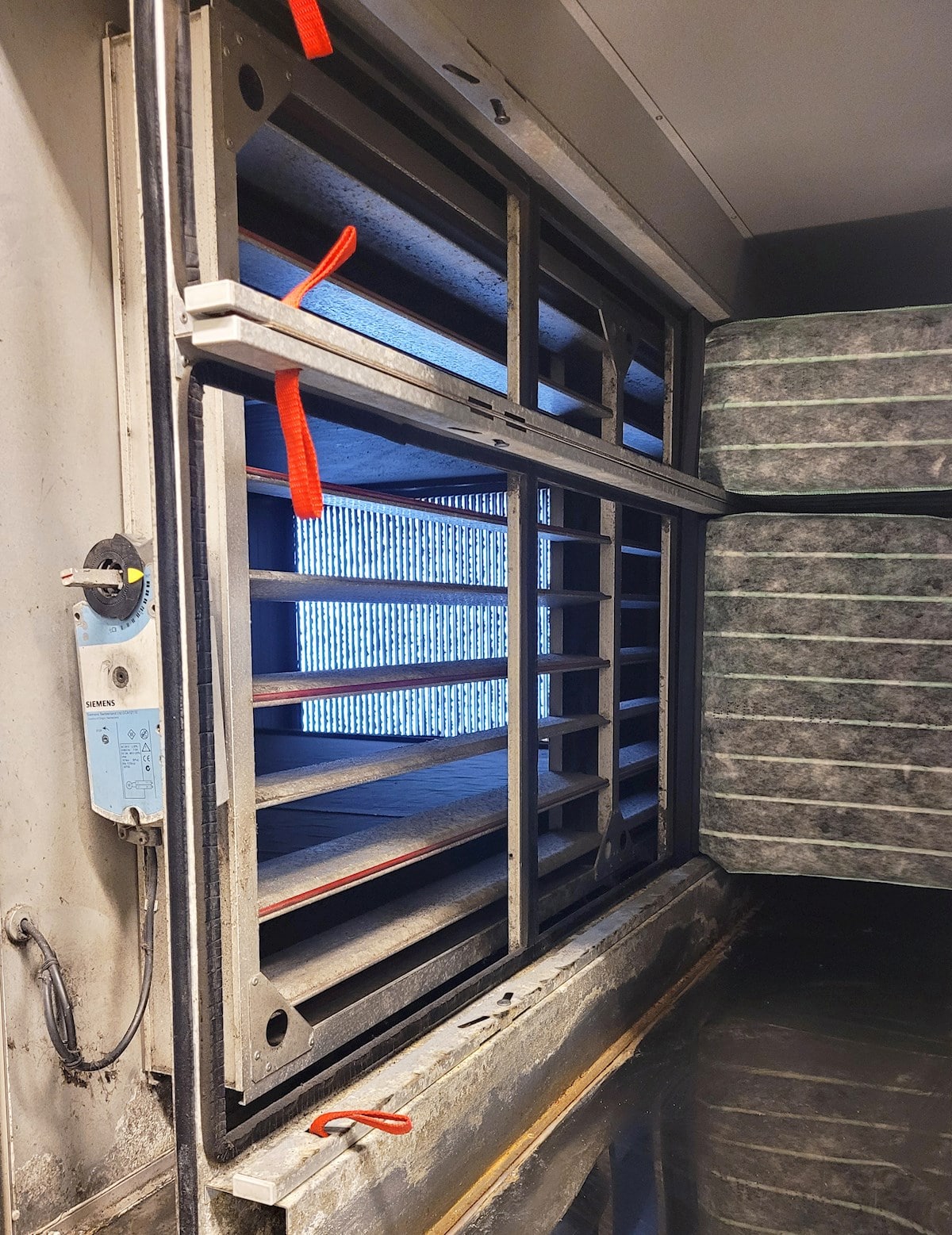

For this purpose, the airport has installed a ventilation system with 2-stage filtration consisting of ePM1 60% (F7) bag filters for particle filtration and molecular filters for molecular filtration (carbon filtration). Camfil AB has a long-standing and strong cooperation with Copenhagen Airport, where the ventilation is supplied by Camfil‘s selected filters.

AdobeStock 58044147
”The solution seems to be working perfectly, and it savesus time and money. Therefore, we have also chosen thesame solution for the other facilities.
Copenhagen Airport 2 case study

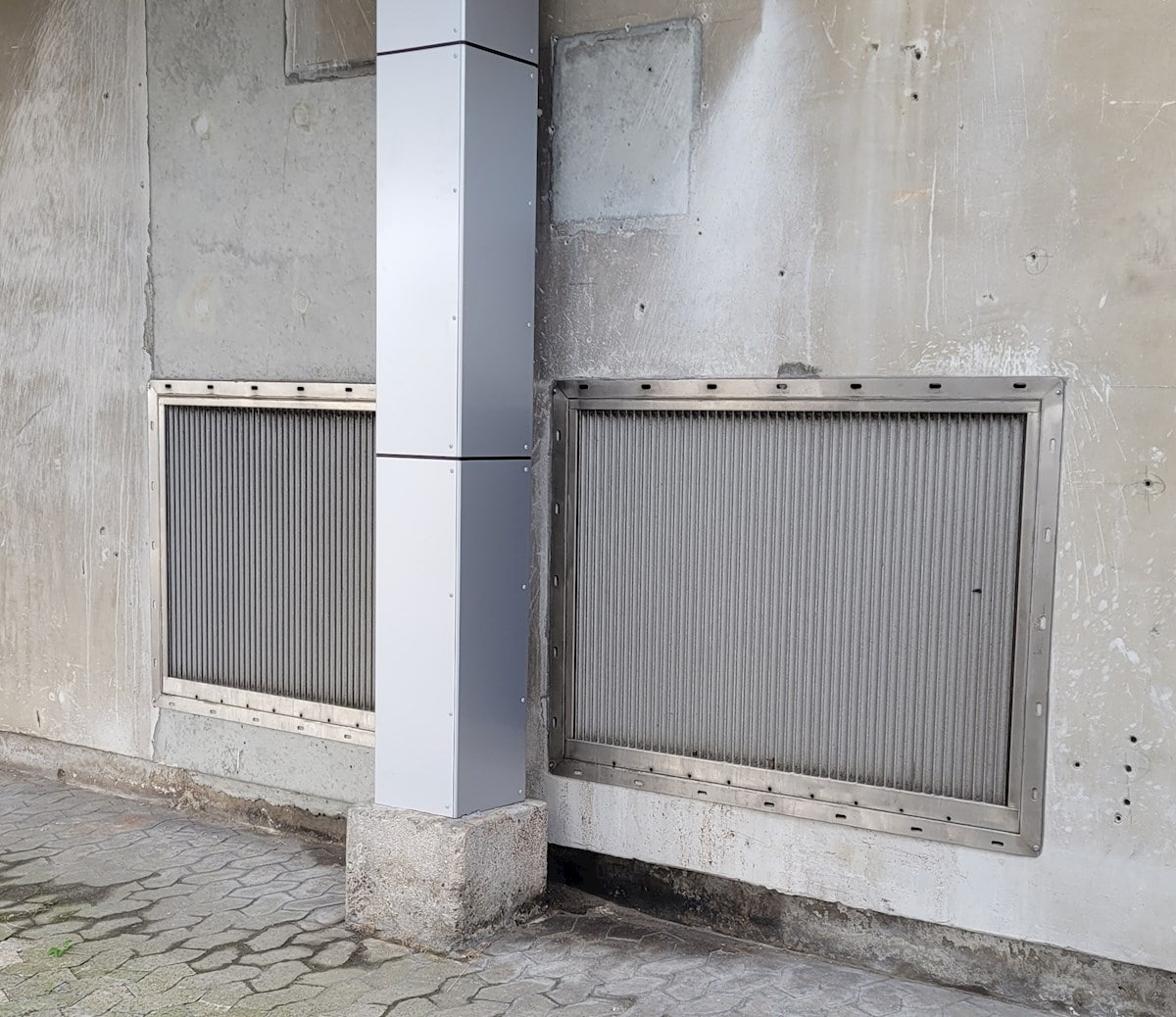

  • Camfil's CamVane drip catcher, designed to protect ventilation systems and ducts.
  • The catcher was installed in the air intake, where it effectively captures and discharges water droplets from the air stream.
  • It protects expensive equipment and has a low noise level and low pressure losses.
Camfils CamVane

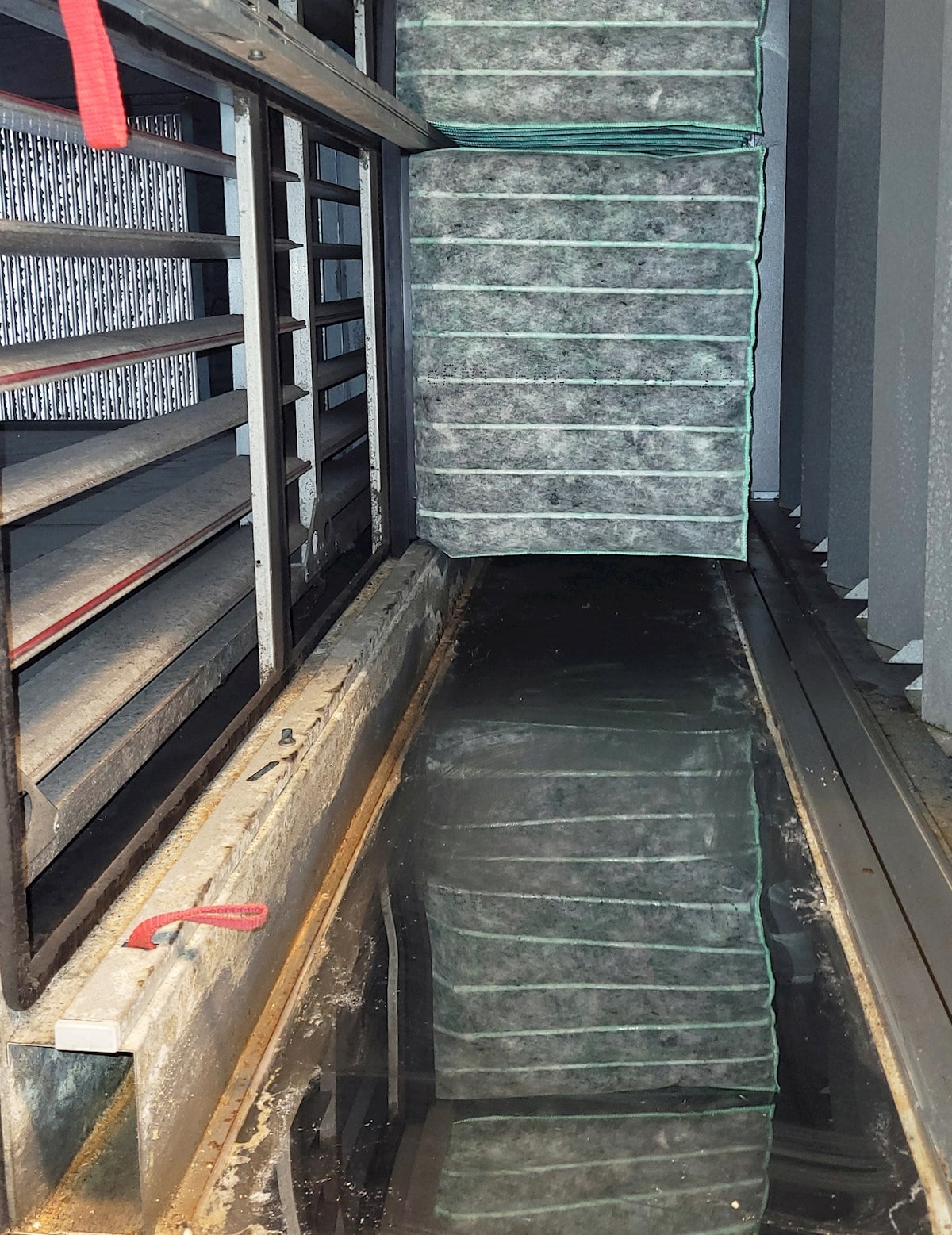

The drip catcher has been installed for over 3 years and has clearly proven that it stops water from entering the system, thereby the bottom plate in the system no longer corrodes and the filters do not have to be changed due to moisture. The positive result has therefore led Copenhagen Airport to invest in three extra CamVane droplet traps for two other problematic facilities.
