CamPulse CamBrane

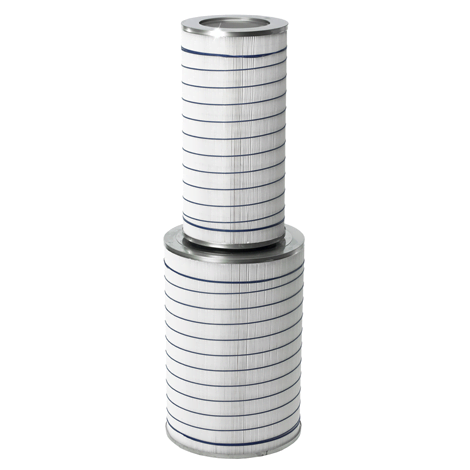

The CamBrane HemiPleat is a cartridge membrane filter and an EPA air filter with non-discharging and hydrophbic properties that offer best-in-class salt and water protection for gas turbines. It offers the lowest pressure drop and helps reduce CO2 emissions per MWh. It is suitable for installations where safety/reliability is important, including corrosive/humid/wet conditions.

  • Self-cleaning cartridge filter with long filter life and low and stable pressure drop

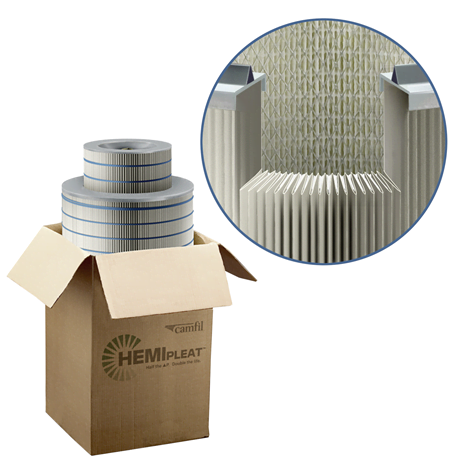

  • Improved pulsability due to HemiPleat open-pleat media technology
  • Good pulsability with depth-loading and multi-layer media technology
  • High availability and highest reliability
  • Best fuel efficiency leads to lower CO2 emissions per MWh
  • E12 grade limits degradation such as fouling and corrosion
  • Suitable for harsh environments
  • ICON5 Low Pressure Drop
  • ICON9 en1822
  • ICON15 LCC optimized
  • ICON17 2in1
Item Type Filter Class EN1822 Airflow (m3/h) Diameter 1 (mm) Diameter 2 (mm) Length 1, Cylindrical (mm) Length 2, Cylindrical (mm) Pressure drop Initial (Pa)
CamPulse Co/Cyl E12 2500 445/324 324 660 660 180
Tenkay 34" E12 1150 324 864 165


Humid or dry heavy dust load areas, coastal and fine hydrocarbon environments
Pre- or final filter for gas turbines, large industrial air compressores, diesel & gas engines, generators & enclosures
Filter Frame
Galvanised steel, Stainless steel
Max temperature (°C)
Relative Humidity
Recommended final pressure drop
1000 Pa
Polyurethane, endless foamed, EPDM
End caps: Available in Galvanized steel (Standard), Power coated, Stainless steel AISI304, Stainless steel AISI 316
Construction with outercage and innercage also available as Cylindrical/Conical.
