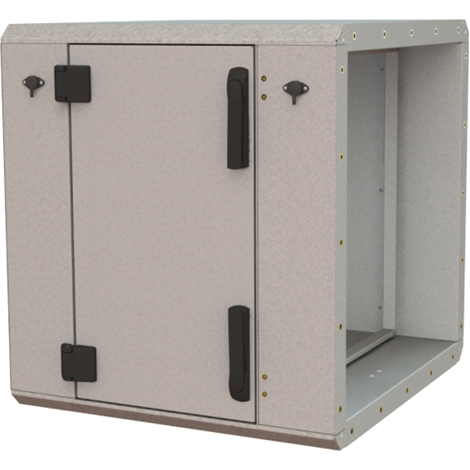

CamCube AD

Air filter housing for box type compact filters. Designed to easily integrate and upgrade your existing ventilation system to include additional air filtration stages

  • For Compact filters (box type) full size 610x610x292mm
  • Build-in thermal insulation
  • Corrosivity class C4 for Aluzinc housing material
  • Leakage class D acc. EN15727
  • Easy maintenance
  • ICON24 magicad
Item Type Width (mm) Height (mm) Depth (mm)
CamCube AD 1010 707 707 650
CamCube AD 1020 707 1322 650
CamCube AD 1030 707 1937 650
CamCube AD 2010 1322 707 650
CamCube AD 2020 1322 1322 650
CamCube AD 2030 1322 1937 650


CamCube AD is a flexible and compact range of filter housings for HEPA filters and other filter types with 292 mm depth.
Max temperature (°C)
Material: Aluzinc
Option: Stainless steel SS EN 1.4301
Filter: High air flow HEPA-filter, in size 610x610x292 mm (Absolute DG or VG). See the relevant page in the catalogue for the technical data about filters.
Filter clamping: Suitable for filters, in depth 292 mm. Tool for filter clamping hex key 5 mm.
Note: The housing is reversible depending on airflow direction. When a prefilter is required, the CamCube HF-S filter housing with flange connection to suit CamCube AD is recommended.
