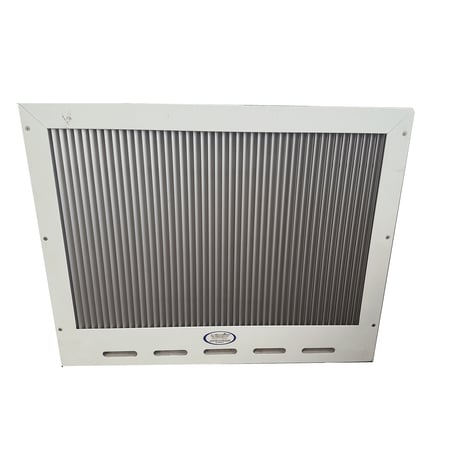

CamVane SW

The CamVane SW vertical separator is a weather louvre designed for the harshest of conditions found in offshore and marine applications. Capable of operating at higher velocity's with equally spaced and insulated profiles which separates water droplets effectively from the air stream, Engine room intake or air handling systems.

  • Effective Moisture separator
  • Specially designed profiles for high separation efficiency
  • Designed for tough conditions with Anodized vanes and Powder-coated housings
  • Wide range of colors, dimensions and shapes are possible with front or rear flanges
  • Drain options for piped systems or slots for water run-off
  • Optional heat cable extrusion providing protection for anti-icing systems and to decrease the risk of ice build-up.
Item Type Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Average (Pa) Velocity (m/s)
CamVane SW 1000 1000 75 18360 93pa (@5.0m/sec) 6.1
CamVane SW-2 A 1000 1000 110 11880 250pa (@4.1m/sec) 4.1
CamVane SW-2 B 1000 1000 110/195 18360 380pa (@5.0m/sec) 6.1

Specifications

Application
The air intake which is very efficient for rain protection and can be used in all filter installations where water, rain and moisture problems occur.
Especially suitable in marine environments and coastal areas due to the material specification and insulated vane profiles.
Installation options
Mounting flange or housings to customer specifications.
Comment
Product Features:
CamVane SW has specially designed aluminium profiles that ensures high separation efficiency
Frame material: Aluminium
Profiles material: Aluminium
Dimensions (WxH): From 250x250 mm to 2500 x 2500 mm, depth 75 mm as a single stage
Air velocity: 1.0 - 6.1 m/s, with HC (heat cable) option 1.0-4.0 m/s
Optional Stainless steel casings AISI316L, Profiles: Aluminum, Optional two or three stage system with coalescing filters and final filters, Optional Exhaust seperator for marine applications
Tested according to EN 13030:2001: Class A
Options: Mounting flange, drain type, paint finish, heat cable extrusion (CamVane SW-HC)
