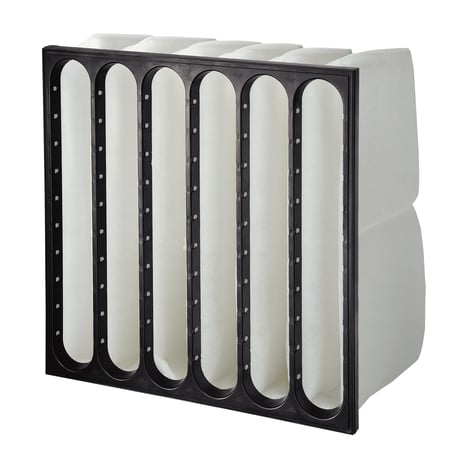

Hi-Cap XLS

Bag filter for prefiltration and exhaust applications with plastic frame. Hi-Cap XLS provides an optimal protection of the further filtration stages in HVAC system. Available in various bag lengths in Coarse 60% according to ISO16890.

  • Low initial pressure drop
  • Flat pressure drop curve
  • Comprehensive range of standard sizes
  • Innovative pocket design for optimum air distribution
  • Conical pockets
  • ICON7 iso16890.ai
  • ICON31 Mount_bagfilters
Item Type ISO 16890 Filter Class EN779 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
HC XLS-66/370 Coarse 60% G4 592 592 370 3400 35
HC XLS-56/370 Coarse 60% G4 490 592 370 2800 35
HC XLS-36/370 Coarse 60% G4 287 592 370 1700 35
HC XLS-65/370 Coarse 60% G4 592 490 370 2800 35
HC XLS-63/370 Coarse 60% G4 592 287 370 1700 35
HC XLS-66/520 Coarse 60% G4 592 592 520 3400 30
HC XLS-56/520 Coarse 60% G4 490 592 520 2800 30
HC XLS-36/520 Coarse 60% G4 287 592 520 1700 30
HC XLS-65/520 Coarse 60% G4 592 490 520 2800 30
HC XLS-63/520 Coarse 60% G4 592 287 520 1700 30
 Pressure drop calculation tool is available

Calculate pressure drop

Choose a full-size filter module in the table above to calculate the pressure drop.
Full-size filter modules are typically 592x592mm for bag/panel filters and 610x610mm for HEPA filters.

Specifications

Application
Pre-filtration for removing the largest particles in an air conditioning system
Filter Frame
Plastic moulded
Media
Synthetic
Max temperature (°C)
70ºC
Relative Humidity
100%
Max final pressure drop, EN 13053
Initial pressure drop + 50 Pa or initial pressure drop x3 (whichever is lower)
Dimension standard
Filter front dimensions according EN 15805
Installation options
Front and side access housings and frames are available
Max Airflow
1,25 x nominal flow
