CamGT filters are engineered to excel in extreme environments where your turbomachinery are threatened by high humidity, salt-laden air and heavy pollution or particulates. They are optimized for EPA efficiency and hydrophobicity to virtually eliminate fouling, corrosion and maintenance downtime, all at a lower and stable pressure drop.
With a global installed base of tens of thousands of filters, CamGT is a trusted solution for extreme conditions such as Offshore or Coastal environments where some of these filters have been safely operating for over 40,000 hours on the field!

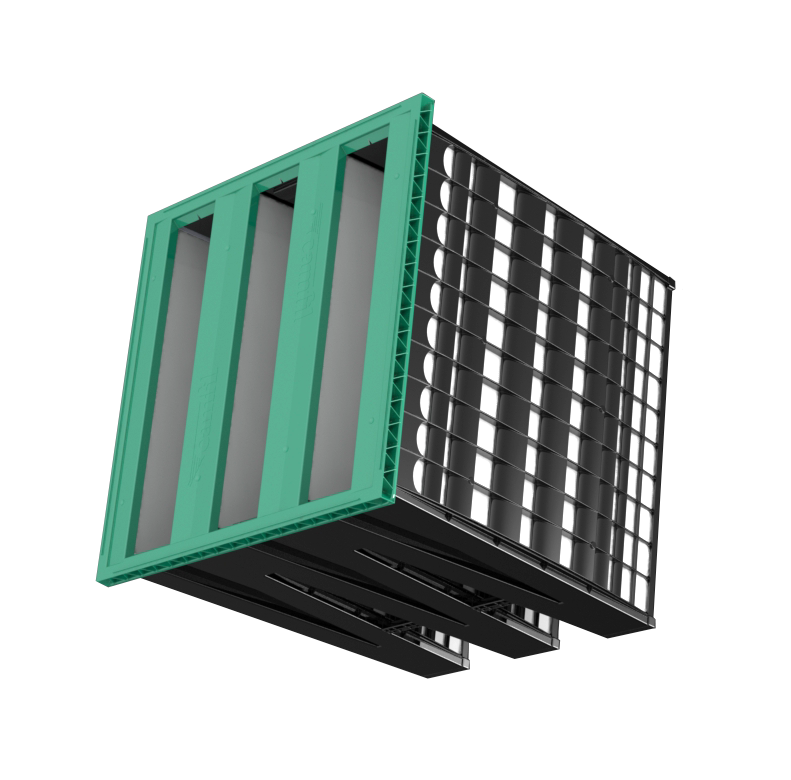

The CamGT 3V-600, with its extended depth and media area, is the ultimate high performance GT filter. It packs in all the high performance features of the line:
The extended depth and optimized geometry and media area delivers the longest life at the lowest and most stable pressure drop on the market - maximazing profitability with every MWhr produced.

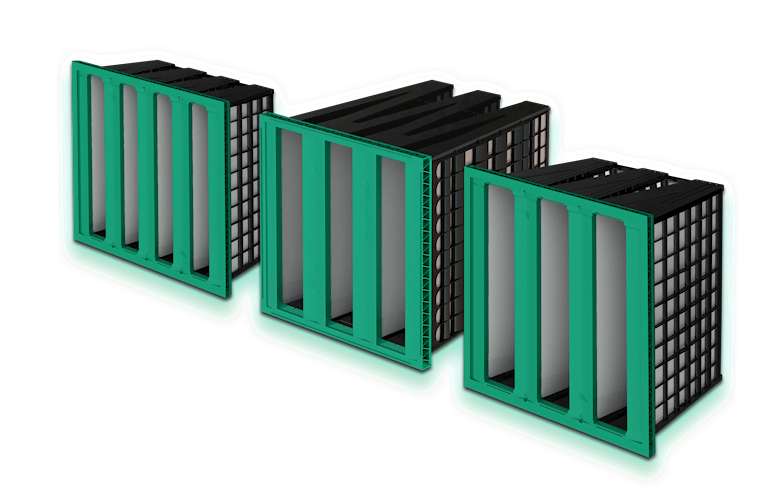

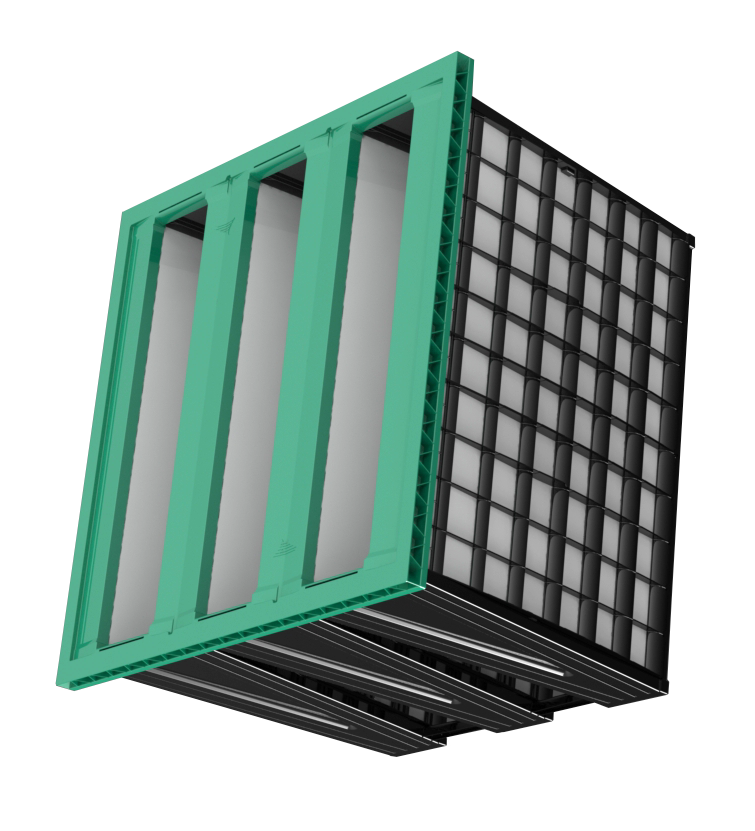

Our CamGT lines includes 2 further sizes, 440mm depth and 300mm depth.

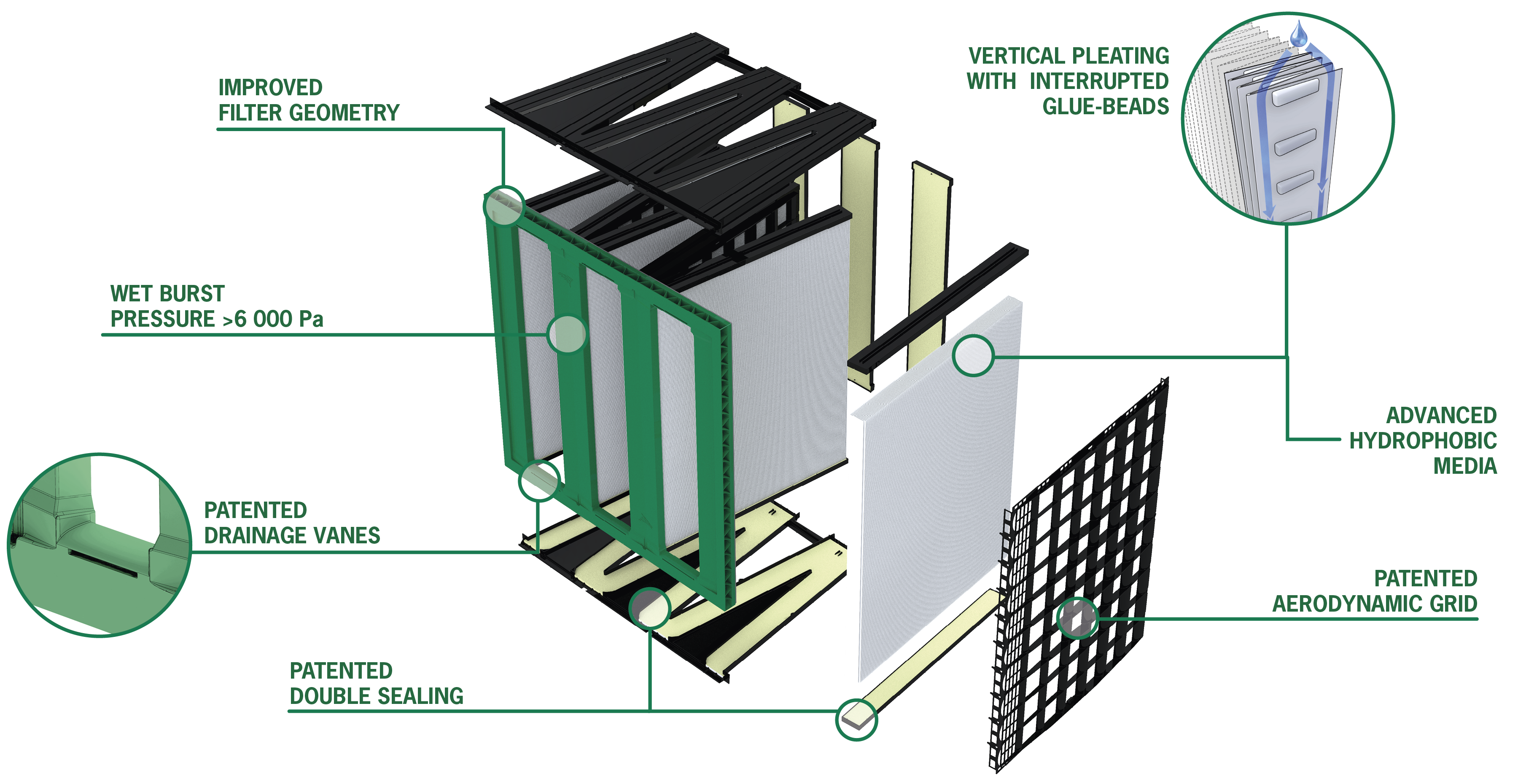

The filters includes all the high performance features of the line:
The new and improved filter geometry reduces the construction pressure drop even further.
This level of protection prevents pressure spikes and unplanned downtime from offline water washes. It also prevents hot corrosion that increases heat rate and robs your engines of power. And with a longer filter life, you can plan your filter changes to match up with regular maintenance intervals. And the depth options allows you to match your maintenance interval needs even better.
MJ / MWh
Tonnen / TWh

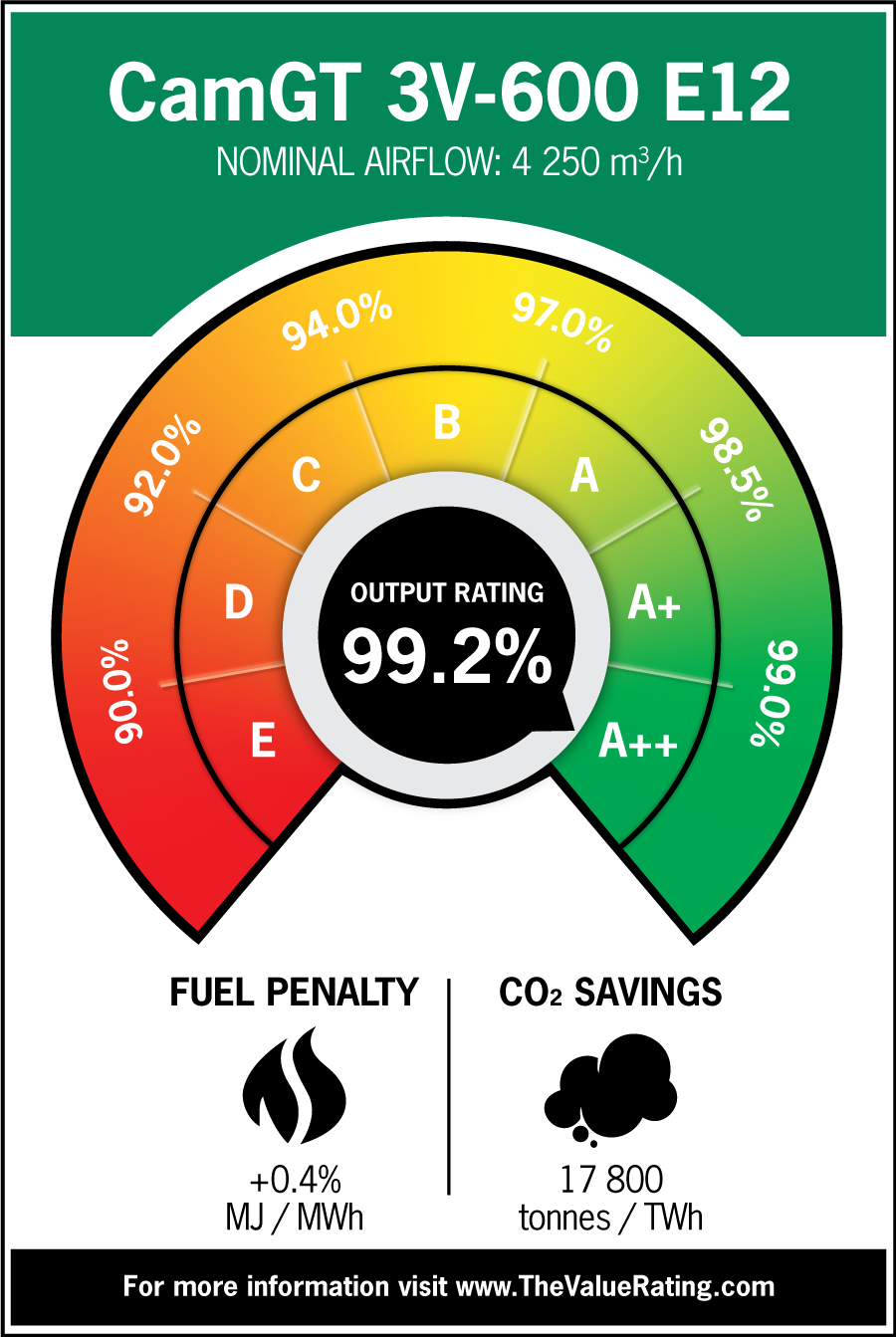

|A++||CamGT 3V-600 E12||99.20%||0.40%||17 800|
|A++||CamGT 3V-440 E12||99.10%||0.40%||17 700|
|A++||CamGT 3V-600 E11||99.00%||0.50%||17 400|
|A++||CamGT 3V-440 E11||99.00%||0.50%||17 300|
|A+||CamGT 4V-300 E12||98.90%||0.40%||17 500|
|A+||CamGT 3V-440 E10||98.80%||0.60%||16 900|
|A+||CamGT 3V-600 E10||98.80%||0.60%||16 900|
|A+||CamGT 4V-300 E11||98.80%||0.50%||17 200|
|A||CamGT 4V-300 E10||98.40%||0.70%||16 300|
|B||CamGT 3V-600 F9||94.80%||2.60%||8 900|
|B||CamGT 3V-440 F9||94.80%||2.60%||8 900|
|B||CamGT 4V-300 F9||94.70%||2.60%||8 800|
|C||CamGT 3V-440 F8||93.80%||3.10%||6 900|
|C||CamGT 4V-300 F8||93.70%||3.10%||6 800|
|C||CamGT 3V-600 F8||92.40%||3.80%||4 000|
|C||CamGT 4V-300 F7||92.30%||3.80%||3 900|
