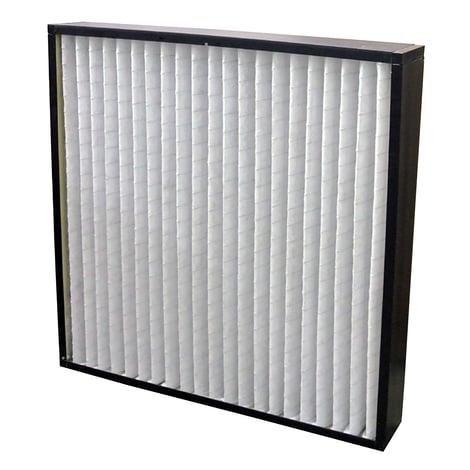

CamClose Compact

  • High water removal efficiency
  • High dust holding capacity
  • High strength ABS frame
  • Fully incinerable
  • ICON7 iso16890.ai
  • ICON 54 ISO 29461 icon
Item Type ISO 29461 ISO/PM rating Filter Class EN779 Filter Class ASHRAE Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
Camclose Compact - 592x592x96-T2 T2 Coarse 70% G4 MERV 7 592 592 96 4250 60
CamClose Compact -592x592x96-M6 ePM2,5 50% M6 MERV 11 592 592 96 4250 105

Specifications

Application
Pre-filter with high efficiency removal of water and mist with medium efficiency removal of airborne particulates
Filter Frame
ABS
Media
Glass fiber, Synthetic
Relative Humidity
100%
Recommended final pressure drop
450 Pa
Gasket
Polyurethane, Neoprene
Sealant
Polyurethane
Comment
DIN 53438.
Filter Class ASHRAE
MERV 7
