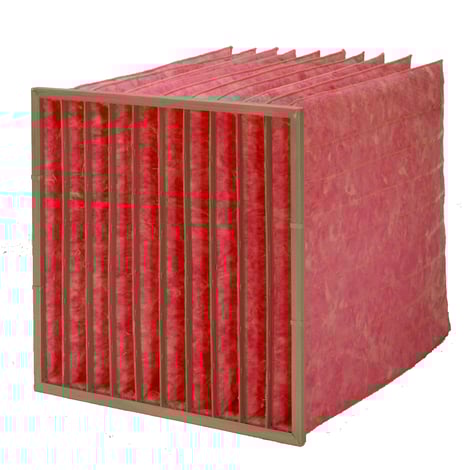

Hi-Flo

Multi-pocket high efficiency filters with tapered pleats and pockets.

  • High loft air laid micro fine media
  • Galvanized steel header frame
  • Available in multiple ASHRAE or ISO grade efficiencies
  • Tapered pockets offer Controlled Media Spacing (CMS) for full use of media area
  • Available in multiple height and width dimensions and multiple pocket depths and lengths
  • Available in MERV 9 through MERV 15, all models are also MERV-A
  • Guaranteed to 10" w.g. without filter failure
  • ICON3 efficiency guarantee
  • ICON5
  • ICON7 iso16890.ai
  • ICON15 LCC optimized
  • ICON14
  • ICON4 IAQ_Museums
  • ICON1 commercial buildings
  • ICON41 ECI_5
  • ICON42 UL logo

Specifications

Application
Multi-pocket high efficiency filters with tapered pleats and pockets avalable in 12", 22" and 30" depths.
Frame
Galvanized steel
Media
Glass fiber
Max temperature °C
70
Recommended final pressure drop
2x Initial pressure drop
Gasket
Neoprene
Comment
Ratings: ECI value of five stars, listed as UL 900 by Underwriters Laboratories.
For more details: Product Sheet 1211
