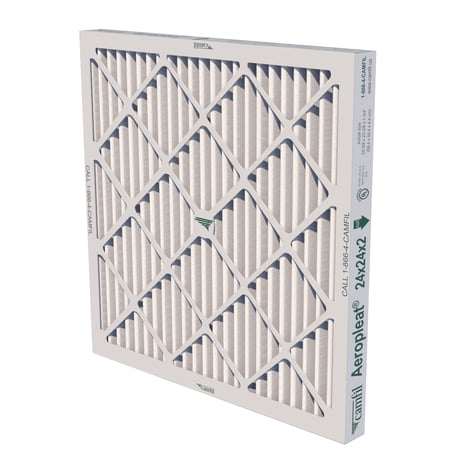

AP Thirteen

  • Lowest cost of ownership for a MERV 13 filter in a pleated panel design
  • Water resistant cardboard frame
  • Pleated panel filter for meeting LEED requirements
  • Available in 2” and 4” depths
  • ICON7 iso16890.ai
  • ICON42 UL logo
Item Type ISO/PM rating Filter Class ASHRAE Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
AP-THIRTEEN 24x24x2 ePM10 60% MERV 13 594 594 44 3400 100
AP-THIRTEEN 24x12x2 ePM10 60% MERV 13 289 594 44 1700 100
AP-THIRTEEN 24x20x2 ePM10 60% MERV 13 495 594 44 2839 100
AP-THIRTEEN 24x24x4 ePM10 60% MERV 13 594 594 95 3400 85
AP-THIRTEEN 24x12x4 ePM10 60% MERV 13 289 594 95 1700 85
AP-THIRTEEN 24x20x4 ePM10 60% MERV 13 492 594 95 2839 85

Specifications

Application
Prevention of dust and dirt build up on heating/cooling coils within ventilation systems
Filter Frame
Water resistant cardboard
Media
Synthetic
Max temperature (°C)
70ºC
Recommended final pressure drop
250 Pa
Dimension standard
Filter front dimensions according EN 15805
Installation options
Front and side access housings and frames are available, Type 8 and FC Housings
Comment
Fire rating: UL 900
Filter Class ASHRAE
MERV 13
