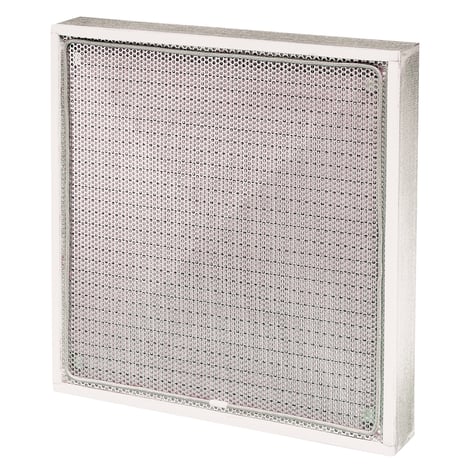

HEPA filter for very high temperature applications (e.g. depyrogenation tunnels) up to 350ºC, specific ceramic frame and glass fibre thread pleat pack ensure temperature stability. Due to low filter height suitable for space limited installations.
High temperature HEPA filter
For low installation depths (84mm) and low air velocity (0,9m/s)
Efficiency 99,99% at 0,3 μm (meets FDA requirements)
Maximum continuous operating temperature 350ºC
Exclusive precuring process at 300ºC carried out in the plant
Protection of ultra-clean processes at high temperature, sterilisation tunnels in the pharmaceutical industry
Filter Frame
Composite ceramic
Media
Glass fiber
Max Temperature °C (Peak)
350ºC
Separator
Glass fiber
Gasket
Glass Fiber, Braided glass fiber
Grille, Downstream
Stainless steel
Grille, Upstream
Stainless steel
Sealant
Ceramic
Installation options
A stainless steel adaptor frame can be supplied to reach the thickness of 150mm or 292mm
Max. final pressure drop
350 Pa
Comment
Efficiency 0.3µm : > 99.99% @ front velocity 0.9m/s Local penetration max.: 10-4 maximum,(0.01% acc. FDA) after the 1st heating cycle on site following Camfil procedure Note : since full running condition in customer equipment are not able to be fully described, Camfil is not able to guarantee further to the 1st heating cycle on site NB: To reduce fume emission when starting up, TERMIKFIL undergoes a specific precuring cycle in the factory at 300ºC using an exclusive CAMFIL process
