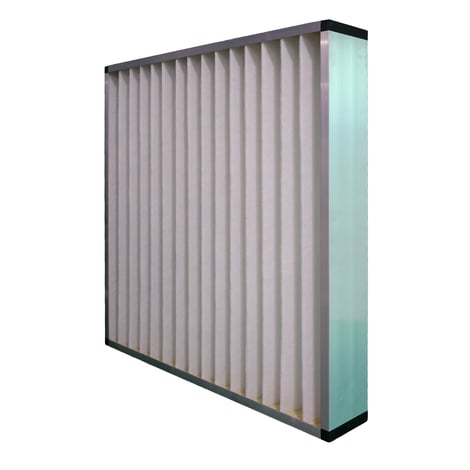

Pure V

Camfil Pure-V is a superior quality metal framed V-form panel filter offering extended filter life and durability, suitable for use in outdoor air intakes, humid environments or where intermittent exposure to mist or spray may occur. Pure-V media is rigid, self-supporting and 100% sealed into the solid aluminium outer frame (fully potted). This secure structural bonding of the filter media to the frame ensures a consistent pleat arrangement and eliminates the potential for air and contaminant bypass. Pure-V is also suitable for use as a primary filter for air conditioning applications or as a prefilter to extend the life of a secondary filter.

  • Solid aluminium frame and construction
  • Fully supported synthetic media bonded to frame
  • Compact, consistent pleat for full media utilisation
  • Large media surface, long filter life
  • Versatile for various applications
  • ICON7 iso16890.ai
  • ICON8 en779 2012
Item Type ISO/PM rating Filter Class EN779 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
Pure V 24x24x2-G4 Coarse 55% G4 594 594 48 3400 55
Pure V 12x24x2-G4 Coarse 55% G4 292 594 48 1700 55
Pure V 24x12x2-G4 Coarse 55% G4 594 292 48 1700 55
Pure V 24x24x4-G4 Coarse 55% G4 594 594 96 3400 40
Pure V 12x24x4-G4 Coarse 55% G4 292 594 96 1700 40
Pure V 24x12x4-G4 Coarse 55% G4 594 292 96 1700 40

Specifications

Application
Prevention of dust and dirt build up on heating/cooling coils within ventilation systems. Suitable for outdoor air intakes, humid environments or where intermittent exposure to mist or spray may occur. Also suitable for use as a primary filter for air conditioning applications or as a prefilter to extend the life of a secondary filter.
Filter Frame
Aluminium
Media
Polyester
Max temperature (°C)
80°C maximum in continuous service
Installation options
Universal filter holding frames, Front and side access housings, Kaire kitchen exhaust unit.
Comment
Non standard sizes locally made to order.
