CamPlis VF

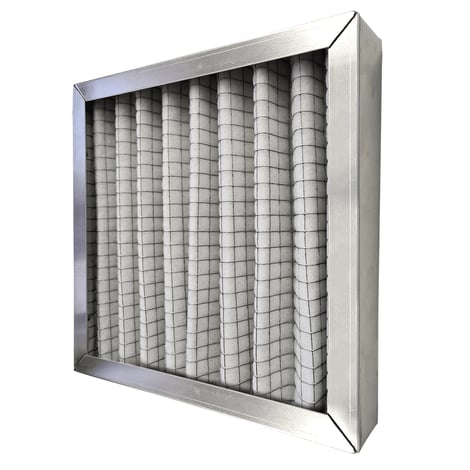

Camfil Camplis VF is a locally made metal framed V-form panel filter custom fabricated to a variety of depths and sizes. Suitable for high humidity applications, as a primary filter for non-critical air conditioning and ventilation systems or as a prefilter to extend the life of a secondary filter.

  • Light gauge aluminium frame
  • Media glued into frame with wire mesh support on air leaving side
  • Suitable for high humidity applications
  • Custom made for any size up to maximum 800mm height and 900mm width
  • Available in 25mm, 45mm and 95mm depths
Item Type Filter Class EN779 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
PDA2504 G4 594 594 25 3400 95
PDA4504 G4 594 594 45 3400 55
PDA9504 G4 594 594 95 3400 40

Specifications

Application
Prevention of dust and dirt build up on heating/cooling coils within ventilation systems. Suitable for outdoor air intakes, humid environments or where intermittent exposure to mist or spray may occur. Also suitable for use as a primary filter for non-critical air conditioning applications or as a prefilter to extend the life of a secondary filter.
Filter Frame
Aluminium
Media
Polyester
Max temperature (°C)
70°C
Installation options
Universal filter holding frames
