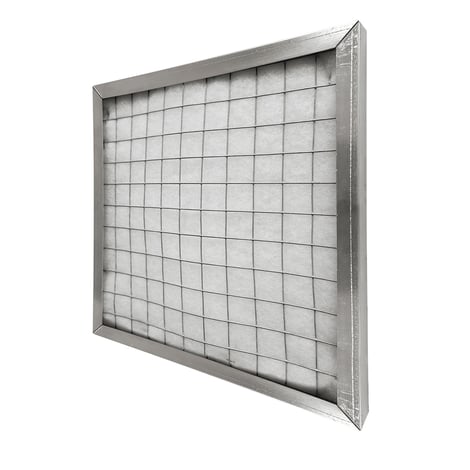

CamPlis FPA

Camfil Camplis FPA is a locally made metal framed flat panel filter custom fabricated to a variety of sizes. Suitable for small air conditioning and ventilation systems, fitted into slides in ducts or behind return air grills.

  • Light gauge aluminium frame
  • Media set into frame with rubber spline
  • Custom made for any size up to maximum 800mm height and 900mm width
  • Available in 9mm or 20mm depths
Filter Class EN779 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
G2 594 594 95 2400 25
G2 594 594 11 2400 25
G4 594 594 25 3400 80

Specifications

Application
Prevention of dust and dirt build up in small air conditioning and ventilation systems. Usually fitted into slides in ducts or behind return air grills.
Filter Frame
Aluminium
Media
Polyester
Max temperature (°C)
70°C
Installation options
Slide channels, Return air grills
Comment
Locally made to various sizes. Maximum height to 800mm. Maximum width to 900mm. Available in 9mm or 20mm depths.
