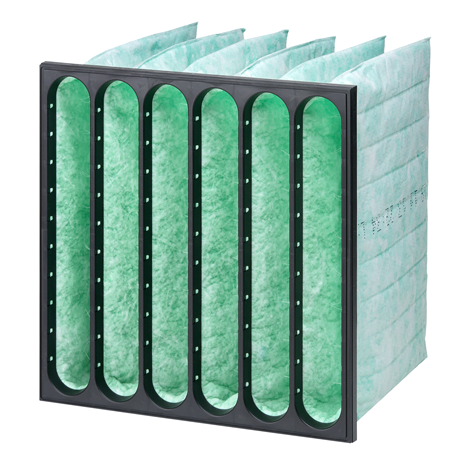

Hi-Flo XLS

The entry level range of glass fiber bag filters with a reduced amount of bags with plastic frame. Thanks to the conical and tapered bag design, these filters come with the optimum balance between price and total cost of ownership. Available in all efficiencies according to ISO16890.

  • Low initial pressure drop
  • Flat pressure drop curve
  • Comprehensive range of standard sizes
  • Innovative pocket design for optimum air distribution
  • Conical pockets
  • Fully incinerable with the plastic frame
  • ICON3 efficiency guarantee
  • ICON7 iso16890.ai
  • ICON23 Eurovent_no_abc
  • ICON31 Mount_bagfilters
  • ICON53 EPD
Item Type ISO 16890 Filter Class EN779 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa) Energy (kWh/year) Energy Class (Eurovent)
5/640 ePM10 60% M5 592 592 640 3400 40 631 B
5/640 ePM10 60% M5 490 592 640 2800 40 B
5/640 ePM10 60% M5 287 592 640 1700 40 B
5/640 ePM10 60% M5 592 490 640 2800 40 B
5/640 ePM10 60% M5 592 287 640 1700 40 B
5/520 ePM10 60% M5 592 592 520 3400 45 836 C
5/520 ePM10 60% M5 490 592 520 2800 45 C
5/520 ePM10 60% M5 287 592 520 1700 45 C
5/520 ePM10 60% M5 592 490 520 2800 45 C
5/520 ePM10 60% M5 592 287 520 1700 45 C
5/370 ePM10 60% M5 592 592 370 3400 55 >1200 E
5/370 ePM10 60% M5 490 592 370 2800 55 E
5/370 ePM10 60% M5 287 592 370 1700 55 E
5/370 ePM10 60% M5 592 490 370 2800 55 E
5/370 ePM10 60% M5 592 287 370 1700 55 E
6/640 ePM2,5 50% M6 592 592 640 3400 70 1212 C
6/640 ePM2,5 50% M6 490 592 640 2800 70 C
6/640 ePM2,5 50% M6 287 592 640 1700 70 C
6/640 ePM2,5 50% M6 592 490 640 2800 70 C
6/640 ePM2,5 50% M6 592 287 640 1700 70 C
6/520 ePM2,5 50% M6 592 592 520 3400 80 1552 D
6/520 ePM2,5 50% M6 490 592 520 2800 80 D
6/520 ePM2,5 50% M6 287 592 520 1700 80 D
6/520 ePM2,5 50% M6 592 490 520 2800 80 D
6/520 ePM2,5 50% M6 592 287 520 1700 80 D
6/370 ePM2,5 50% M6 592 592 370 3400 120 >1900 E
6/370 ePM2,5 50% M6 490 592 370 2800 120 E
6/370 ePM2,5 50% M6 287 592 370 1700 120 E
6/370 ePM2,5 50% M6 592 490 370 2800 120 E
6/370 ePM2,5 50% M6 592 287 370 1700 120 E
7/640 ePM1 60% F7 592 592 640 3400 85 1165 C
7/640 ePM1 60% F7 490 592 640 2800 85 C
7/640 ePM1 60% F7 287 592 640 1700 85 C
7/640 ePM1 60% F7 592 490 640 2800 85 C
7/640 ePM1 60% F7 592 287 640 1700 85 C
7/520 ePM1 60% F7 592 592 520 3400 105 1528 D
7/520 ePM1 60% F7 490 592 520 2800 105 D
7/520 ePM1 60% F7 287 592 520 1700 105 D
7/520 ePM1 60% F7 592 490 520 2800 105 D
7/520 ePM1 60% F7 592 287 520 1700 105 D
7/370 ePM1 60% F7 592 592 370 3400 150 >2050 E
7/370 ePM1 60% F7 490 592 370 2800 150 E
7/370 ePM1 60% F7 287 592 370 1700 150 E
7/370 ePM1 60% F7 592 490 370 2800 150 E
7/370 ePM1 60% F7 592 287 370 1700 150 E
9/640 ePM1 85% F9 592 592 640 3400 200 >2400 E
9/640 ePM1 85% F9 490 592 640 2800 200 E
9/640 ePM1 85% F9 287 592 640 1700 200 E
9/640 ePM1 85% F9 592 490 640 2800 200 E
9/640 ePM1 85% F9 592 287 640 1700 200 E
9/520 ePM1 85% F9 592 592 520 3400 230 >2400 E
9/520 ePM1 85% F9 490 592 520 2800 230 E
9/520 ePM1 85% F9 287 592 520 1700 230 E
9/520 ePM1 85% F9 592 490 520 2800 230 E
9/520 ePM1 85% F9 592 287 520 1700 230 E
 Pressure drop calculation tool is available

Environmental Product Declaration (EPD)

View and download the certificate:

Hi-Flo XLS ePM1 60% (Sweden)

Hi-Flo XLS ePM1 60% (Slovakia)

Calculate pressure drop

m3/h
= Pa
Too high air flow for this filter

Video

Specifications

Application
Air conditioning applications and as pre filters for clean rooms
Filter Frame
Plastic moulded
Media
Glass fiber
Max temperature (°C)
70ºC
Relative Humidity
100%
Max final pressure drop, EN 13053
Initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is lower)
Dimension standard
Filter front dimensions according EN 15805
Installation options
Front and side access housings and frames are available
Max Airflow
1,25 x nominal flow
