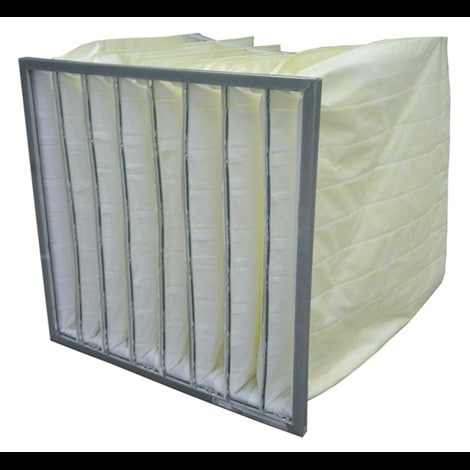

S-Flo U

  • Multi-pocket bag filter
  • Comprehensive range of standard sizes
  • Robust metal header frame
  • Unique pocket design
  • Large surface area
  • Controlled media spacing (CMS)
  • ICON7 iso16890.ai
  • ICON31 Mount_bagfilters
  • ICON42 UL logo
Item Type ISO/PM rating Filter Class ASHRAE Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa) Pockets (no.)
UF6 ePM10 70% MERV 11 592 592 600 3400 75 8
UG6 ePM10 70% MERV 11 490 592 600 2800 75 6
UH6 ePM10 70% MERV 11 287 592 600 1700 75 4
UF7 ePM10 80% MERV 13 592 592 600 3400 95 8
UG7 ePM10 80% MERV 13 490 592 600 2800 95 6
UH7 ePM10 80% MERV 13 287 592 600 1700 95 4
UF8 ePM10 85% MERV 14 592 592 600 3400 110 8
UG8 ePM10 85% MERV 14 490 592 600 2800 110 6
UH8 ePM10 85% MERV 14 287 592 600 1700 110 4

Specifications

Application
Air conditioning applications
Filter Frame
Galvanised steel
Media
Synthetic
Max temperature (°C)
70°C
Recommended final pressure drop
450 Pa
Installation options
Holding frames: Front and side access housings and frames are available, Type 8 and FC Housings
Comment
Recommended final pressure drop: 450 Pa (suggested economical change point 250 Pa)
Fire rating: UL 900
Filter Class ASHRAE
MERV 11
