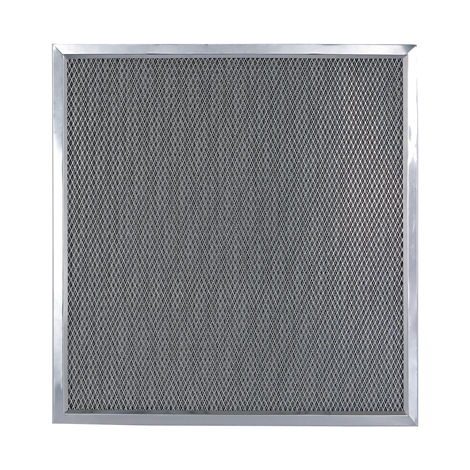

CamMet Metal Filter 8AL

  • Prefilter suitable for cleanable dust, sand, flour, paint and oil
  • Grease and oil filter with very high separation efficiency
  • Can be made in all customised sizes and material
  • ICON7 iso16890.ai
Item Type ISO/PM rating Filter Class EN779 Filter Class ASHRAE Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
CamMet 8AL24X24X2 Coarse 50% G2 MERV 7 594 594 44 3400 41
CamMet 8AL 20X24X2 Coarse 50% G2 MERV 7 495 594 44 2839 41
CamMet 8AL 12x24x2 Coarse 50% G2 MERV 7 289 594 44 1700 41

Specifications

Application
Comfort air conditioning applications, prefilter applications
Filter Frame
Aluminium
Media
Aluminium
Max temperature (°C)
70
Relative Humidity
70%
Filter Class ASHRAE
MERV 7
Dimension standard
Filter front dimensions according EN 15805
Max Airflow
3400m³/h
