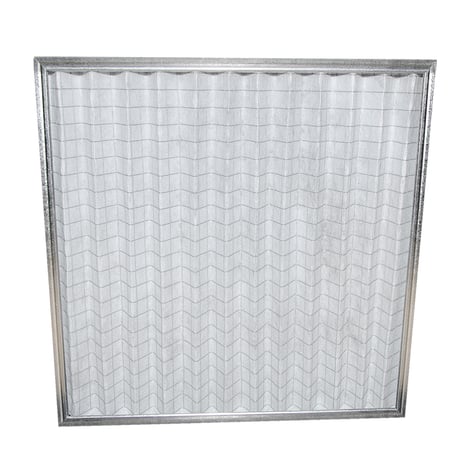

Media Holding Frame (MHF)

Media Holding Frame

  • Suitable for high humidity conditions
  • Tested as per EN 779:2012
  • Progressively built-up thermal bonded polyester fibre
  • Fully supported media bonded into a wire support grid
  • ICON7 iso16890.ai
  • ICON42 UL logo
Item Type ISO/PM rating Filter Class EN779 Filter Class ASHRAE Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
MHF 24x24x2-G4 Coarse 80% G4 MERV 8 594 594 44 3400 75
MHF 20x24x2-G4 Coarse 80% G4 MERV 8 495 594 44 2839 75
MHF 12x24x2-G4 Coarse 80% G4 MERV 8 289 594 44 1700 75

Specifications

Application
Comfort air conditioning applications, prefilter applications
Filter Frame
Galvanised steel
Media
Synthetic
Max temperature (°C)
70ºC
Relative Humidity
70%
Filter Class ASHRAE
MERV 8
Dimension standard
Filter front dimensions according EN 15805
Max Airflow
3400m³/h
