Exhaust Doors

Interchangeable terminal housing exhaust door / grille, optionally with prefilter.

  • Toolless push-push door operation for immediate filter access
  • Interchangeable exhaust door with or without prefilter
  • Open door stop for easy toolless prefilter change
  • Optimum ergonomy for wall mounted operation
  • High corrosion protection against decontamination agents
  • Available powder coated or in stainless steel
Item Type Width (mm) Height (mm) Depth (mm)
CR-D-SW-3P3-F1 346 346 28
CR-D-SW-3P3-F2 346 346 70
CR-D-SW-3P6-F1 346 651 28
CR-D-SW-3P6-F2 346 651 70
CR-D-SW-6P6-F1 651 651 28
CR-D-SW-6P6-F2 651 651 70
CR-D-SW-9P6-F1 651 956 28
CR-D-SW-9P6-F2 651 956 70

Specifications

Application
Fits CleanSeal Exhaust terminal wall housings.
Installation options
Hinged with open door stop and recessed push-push locking, interchangeable with prefilter door
Comment
F1: Standard door
F2: Prefilter door

Related Products

Articles related to CleanSeal Exhaust

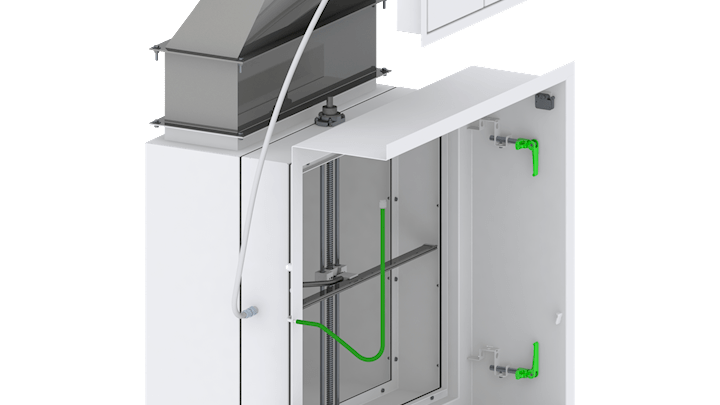

Product Image CleanSeal Exhaust MIP cut_box NEW MAIN
