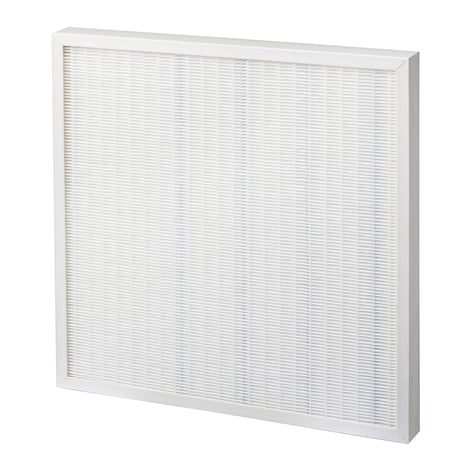

EcoPleat G

A pleated panel filter with plastic frame suitable for environments with high humidities. With its low pressure drop and high dust holding capacity, lowest labour cost thanks to less frequent filter changes can be achieved. This filter comes in ePM1 as well as ePM10 efficiencies according to ISO16890.

  • Ultra compact panel filter with ePM1 and ePM10 efficiencies
  • Low pressure drop thanks to large surface area
  • Long operating life with large dust holding capacity
  • Less frequent changes
  • Fully combustible plastic frame
  • ICON3 efficiency guarantee
  • ICON7 iso16890.ai
  • ICON23 Eurovent_no_abc
Item Type ISO 16890 Filter Class EN779 Width (mm) Height (mm) Depth (mm) Airflow (m3/h) Pressure drop Initial (Pa)
G ePM10 60% M5 592 592 48 2900 65
G ePM10 60% M5 592 287 48 1450 65
G ePM10 60% M5 592 592 96 2900 60
G ePM10 60% M5 287 592 96 1450 60
G ePM10 70% M6 592 592 48 2900 75
G ePM10 70% M6 592 287 48 1450 75
G ePM10 70% M6 592 592 96 2900 70
G ePM10 70% M6 287 592 96 1450 70
G ePM1 55% F7 592 592 48 2900 110
G ePM1 55% F7 287 592 48 1450 110
G ePM1 55% F7 592 592 96 2900 100
G ePM1 70% F8 592 592 48 2900 160
G ePM1 70% F8 592 592 96 2900 105
G ePM1 80% F9 592 592 48 2500 120
G ePM1 80% F9 592 287 48 1250 120
G ePM1 80% F9 592 592 96 2500 100
G ePM1 80% F9 592 287 96 1250 100
G ePM1 55% F7 287 592 96 1450 100
G ePM1 70% F8 287 592 48 1450 160
G ePM1 70% F8 287 592 96 1450 105
 Pressure drop calculation tool is available

Calculate pressure drop

Choose a full-size filter module in the table above to calculate the pressure drop.
Full-size filter modules are typically 592x592mm for bag/panel filters and 610x610mm for HEPA filters.

Specifications

Application
Air conditioning or industrial processing systems and for mini air conditioning systems, individual modules and ventilation equipment
Filter Frame
ABS
Media
Glass fiber
Max temperature (°C)
70ºC
Relative Humidity
100%
Max final pressure drop, EN 13053
Initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is lower)
Separator
Hot-melt
Dimension standard
Filter front dimensions according EN 15805
Installation options
Front and side access housings and frames are available.
Max Airflow
1,1 x nominal flow
Max. final pressure drop
350 Pa
